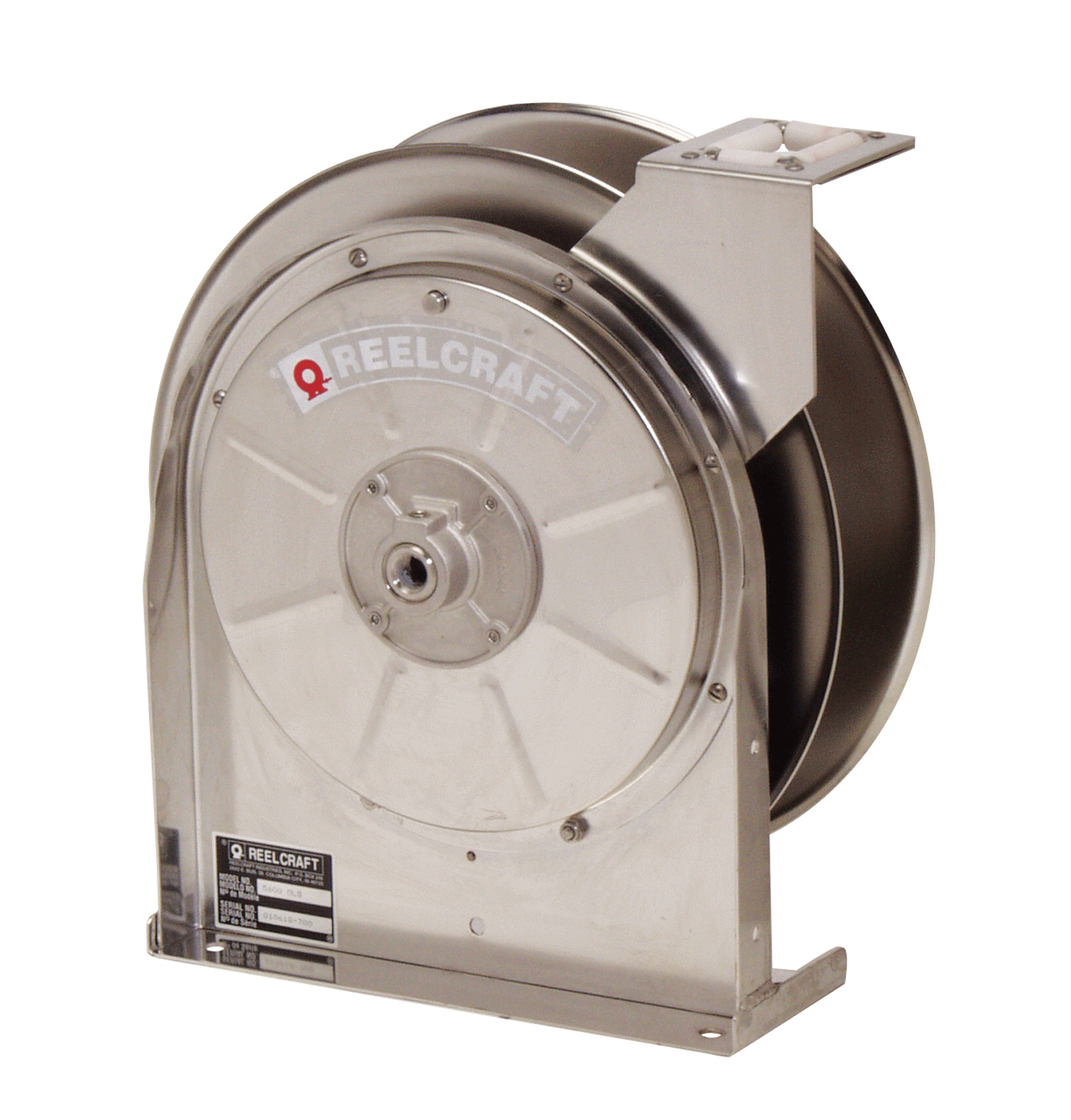

Reelcraft's 5600 OLS stainless hose reel.

5600 OLS-S – 3/8 in. x 35 ft. Stainless Steel Hose Reel

This model is temporarily on production hold due to material availability. Reference part number 7800 OLS-S as an alternate part number. **Please verify that the alternate part number meets the form, fit, and function of your application.**

Reelcraft’s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial solvent handling. Also suitable for coastal, offshore, and on-board ships in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel includes Viton O-rings. Note: Reel includes stainless steel latch parts and fluid path.

  • Reinforced steel – The stainless steel guide arm and base are stamped with ribs and gussets to insure maximum strength and the lightest possible weight.
  • Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
  • Long-life drive spring – Declutching arbor virtually eliminates the possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
  • Quality finish and corrosion resistant – Stainless steel components offer maximum protection from premature corrosion.
  • Made in the USA

Reel Specifications and Dimensions

Additional information

Weight22 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567013099

A14.375"
B14.25"
C9.75"
D2.5"
E6.125"


Fluid Path Materials

Internal Fluid PathStainless Steel
Swivel AssemblyStainless Steel
Swivel SealFKM



Literature and Service Manual

FAQs

How do I increase or reduce spring tension?

Can I adjust the guide opening position on an enclosed model hose reel?

Can my spring driven reel be made constant tension?

How do I install a new drive spring and set pre-turns?

How many GPM’s will I get from my hose?

Air pressure or fluid flow restricted

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
