S602778
S602778-w-reel

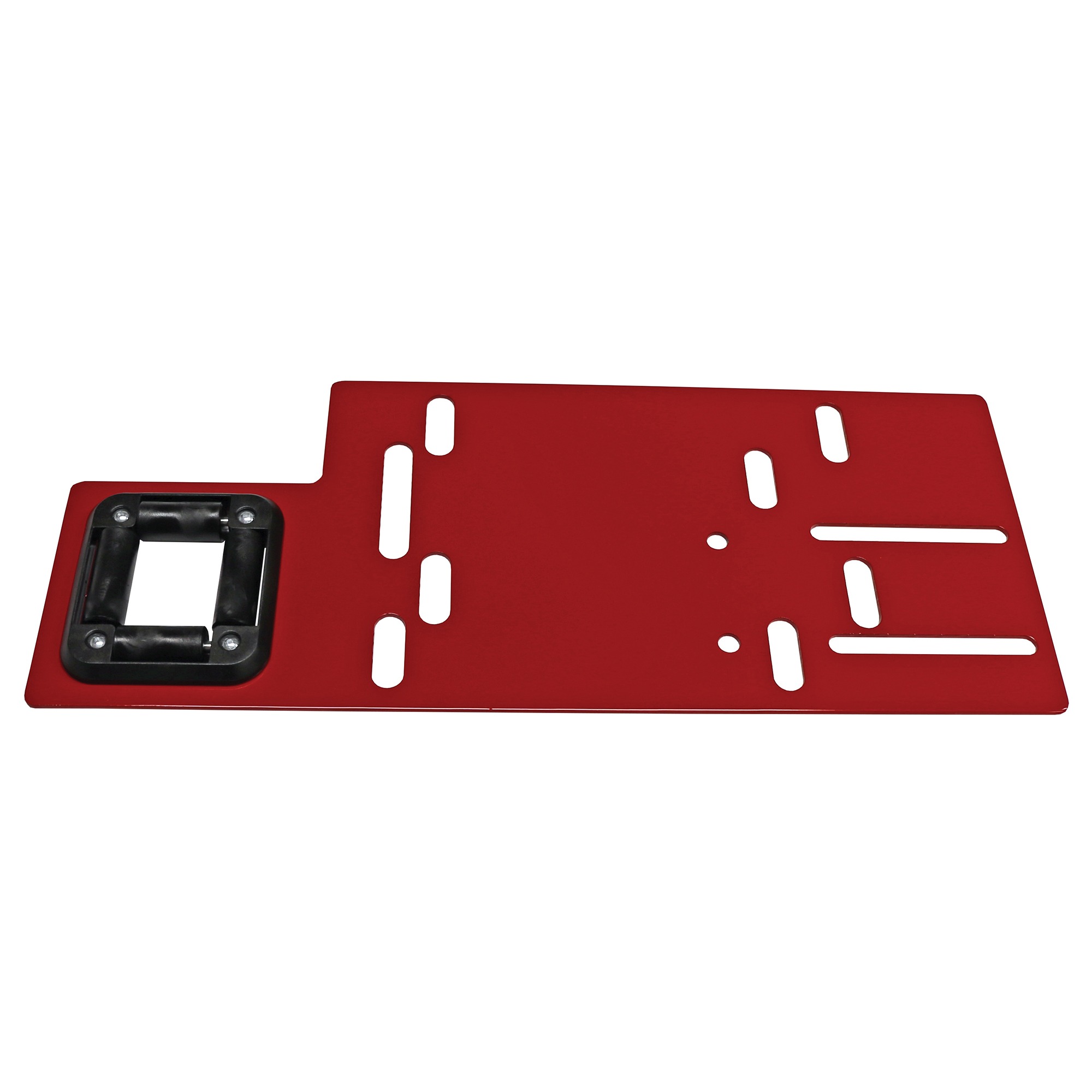

S602778 – Bottom Wind Base Plate

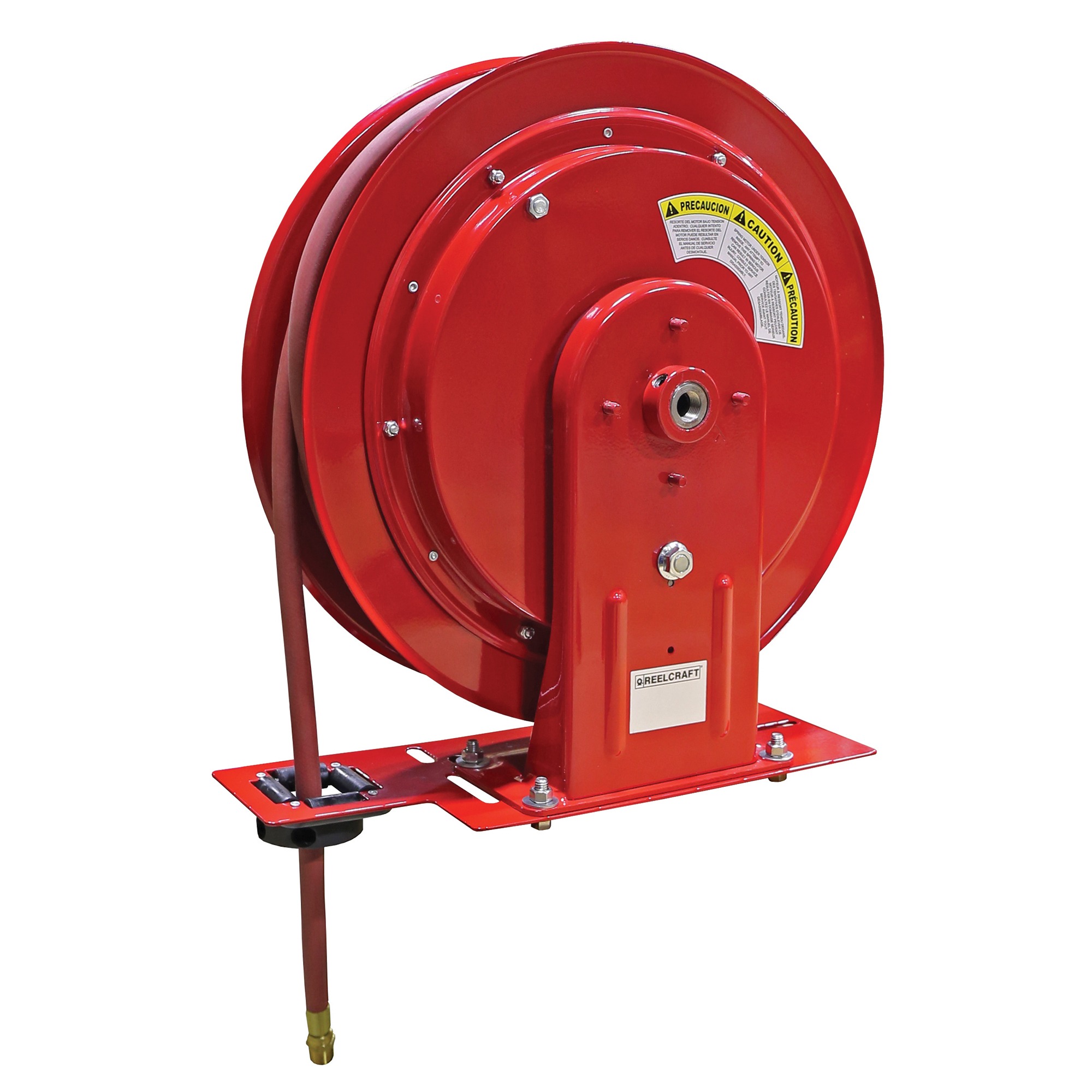

Reelcraft's bottom wind base plate allows for upright, overhead mounting of up to 8 different series of Reelcraft reels. Simply mount the reel to the base plate and position the guide arm in the bottom wind position or remove the guide arm and secure the hose or cord through the roller guide with a bumper stop assembly.


Part NumberS602778
Bracket TypeBase Plate
DirectionBottom Wind
Roller MaterialNylon
Spool SizeVaries
SpecificationsFor Series RT | 4000 | 5000 | 5005 | 70000 | HD70000 | DP5000 | and DP7000.
UPC699567030614
SKU: S602778 Category:
