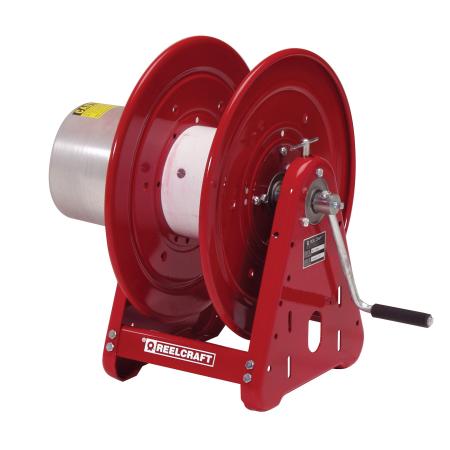

CEA30006 – Premium Duty 400 Amp Cable Welding Reel
Reelcraft's Series CEA welding cable reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity. They have a continuous current path through a live 400 AMP, 90 V DC (maximum) rated enclosed slip ring.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- All-bolted heavy gauge steel construction provides long life and ease of use and maintenance.
- Manual drum lock prevents spool from turning when not in use preventing unwanted pay out of cable.
- Stores cable when not in use, eliminating tangled, kinked welding cables.
Reel Specifications and Dimensions
Additional information
| Weight | 46 lbs |
|---|---|
| Series | |
| Amps | |
| Cable Size #2 | |
| Cable Size #1 | |
| Cable Size 1/0 | |
| Cable Size 2/0 | |
| Cord/Cable Included | |
| UPC |
| A | 20.25" |
| B | 19.375" |
| C | 9" |
| D | 9.75" |
| E | 21" |
| F | 6" |
