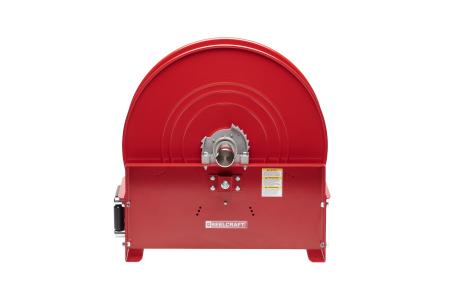

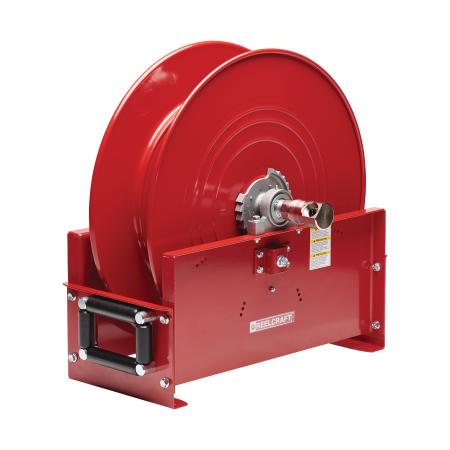

E9400 OLPBW – 1 in. x 50 ft. Ultimate Duty Hose Reel

Reelcraft’s Series E9000 mobile base hose reels offer the greatest amount of stability. Ideal for service trucks, permanent service, or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide conversion kits.

  • Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
  • Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
  • Robust latching mechanism – The latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
  • Reels are shipped in the bottom wind position with a right-hand inlet.
  • Made in the USA
SKU: E9400 OLPBW Categories: ,

Reel Specifications and Dimensions

Additional information

Weight115 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567001881

Guide Roller Position

Bottom Wind

A26.375"
B26.25"
C22.25"
D7.75"
E12"
F24.125"
G4.75"


Fluid Path Materials

Internal Fluid PathSteel
Swivel AssemblySteel
Swivel SealAflas



Literature and Service Manual

FAQs

How do I increase or reduce spring tension?

Can my spring driven reel be made constant tension?

How do I install a new drive spring and set pre-turns?

How many GPM’s will I get from my hose?

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
