Did You Know?
Our Did You Know videos and content give helpful tips and tricks about your reel, accessories and other available options to help make your reel the best it can be!
Did you know you can lock your swing bracket in place using a locking pin?
Our 600992 and 600993 swing brackets for Series RT, 4000, 5000, and 5005 reels come with a locking pin to securely stow your reel in your desired position. Simply line the bracket with the holes and lock your reel into place.
Did you know we have reusable fittings?
If your hose fitting is broken or damaged and needs to be replaced, you don’t have to replace the entire hose. Simply cut off the damaged hose end and install the new fitting. Make sure to tighten it enough to prevent leaks. Note: For low pressure, air and water applications only.
Sizes available (Hose I.D. / End Fitting Size):
– 1/4” / 1/4” NPT (S260306)
– 1/4” / 3/8” NPT (S260306-1)
– 3/8” / 1/4” NPT (S260306-2)
– 3/8” / 3/8” NPT
– 1/2” / 3/8” NPT
Did you know there’s an easier way to install your hose on a Series 30000 reel?
Take the gooseneck off of your reel by removing the socket screws. Then, attach the gooseneck to your hose (seal the hose end with tape). Install the gooseneck back onto your reel and ensure all screws are tightened thoroughly. Begin to wind your hose onto your Series 30000 reel.
Did you know we have conversion kits for our Series 9000 reels?
Our Series 9000 reels are designed with the roller guides assemblies in a bottom wind position built into the full width frame. In certain applications, you’ll want to adjust the direction of the hose to increase the longevity of the hose.
To adjust the direction, install our hose guide roller conversion kits to allow Series 9000 reels to be converted to top wind or side wind positions.
Did you know we have swivel fittings on some of our hoses?
Some of our low and medium pressure air/water hose assemblies include one end fitting to be a swivel. This allows you to twist just the swivel fitting instead of the entire hose making installation quicker and easier.
Did you know you can convert your reel to constant tension?
Converting your reel to constant tension is a game-changer for a variety of industries where quick, controlled retraction is essential for safety and efficiency. This is especially useful if you’re working in an autobody shop, construction sites, or for agriculture applications.
Did you know there’s a right way to handle your hose or cord?
To help extend its lifespan and reduce safety risks, we encourage you to always grab the hose or cord directly, not by the bumper stop, end fitting, or cord receptacle. These components aren’t designed to bear pulling force and can wear out or break over time if used improperly.
Using the correct handling method prevents damage, reduces repair costs, and helps keep your equipment running safely and smoothly.

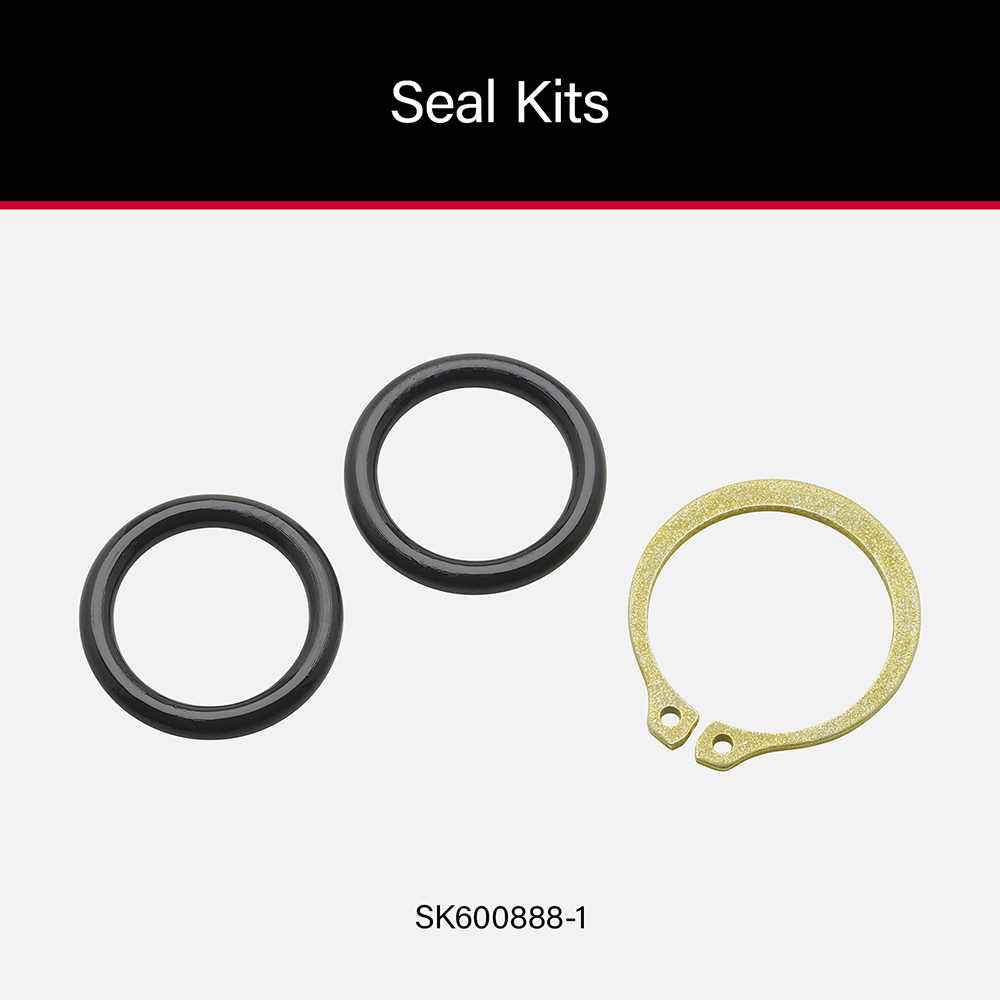

Did you know we offer seal kits?
Whether you’re performing routine maintenance or replacing a damaged seal, our kits provide a convenient solution. You can easily swap out parts like the o-ring instead of replacing the entire swivel.
We offer four types of seal kits: Aflas, Buna, FKM, and EPR.
Seals are versatile—by changing them, you can adapt to different media types, depending on your hose compatibility. However, keep in mind that the hose material must also be compatible with the media you’re using. For optimal performance, ensure that all components are perfectly matched.
Please note, we don’t offer seal kits for every swivel model.

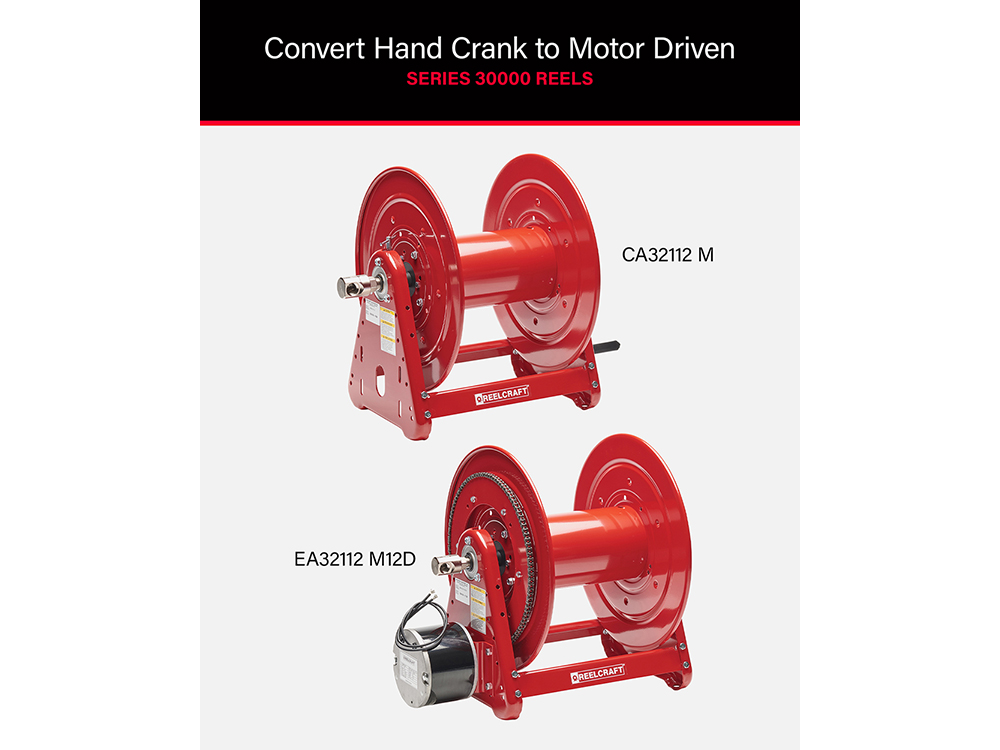

Did you know you can convert a hand-crank reel to be motor driven?
We have kits available for Series 30000 reels that upgrade your hand crank reel to the following motors: 12 volt DC, 115 volt AC or pneumatic. You’ll need two kits to convert your reel—motor gears and chain kit and motor and bracket kit.
Don’t forget—a switch is required for all motor-driven reels. https://www.reelcraft.com/problem-solving/hand-crank-convert/
Did you know we have speed controls for motor driven reels?
Whether you need a fast retraction or a slow, precise pull, we have speed controls you can connect to your motor driven reel. This gives you the power to control your retraction speed.
Did you know we have a 2-year warranty on our products?
All Reelcraft Industries, Inc. products come with a limited warranty of up to 2 years against defects caused by faulty materials or workmanship because we believe quality should never be a question.
From manufacturing to performance, we stand behind what we build. Make sure you follow the installation and service manual instructions, and we’ll take care of the rest.
Learn more on our warranty page.
