S600168 – Roller Hose Guide Assembly

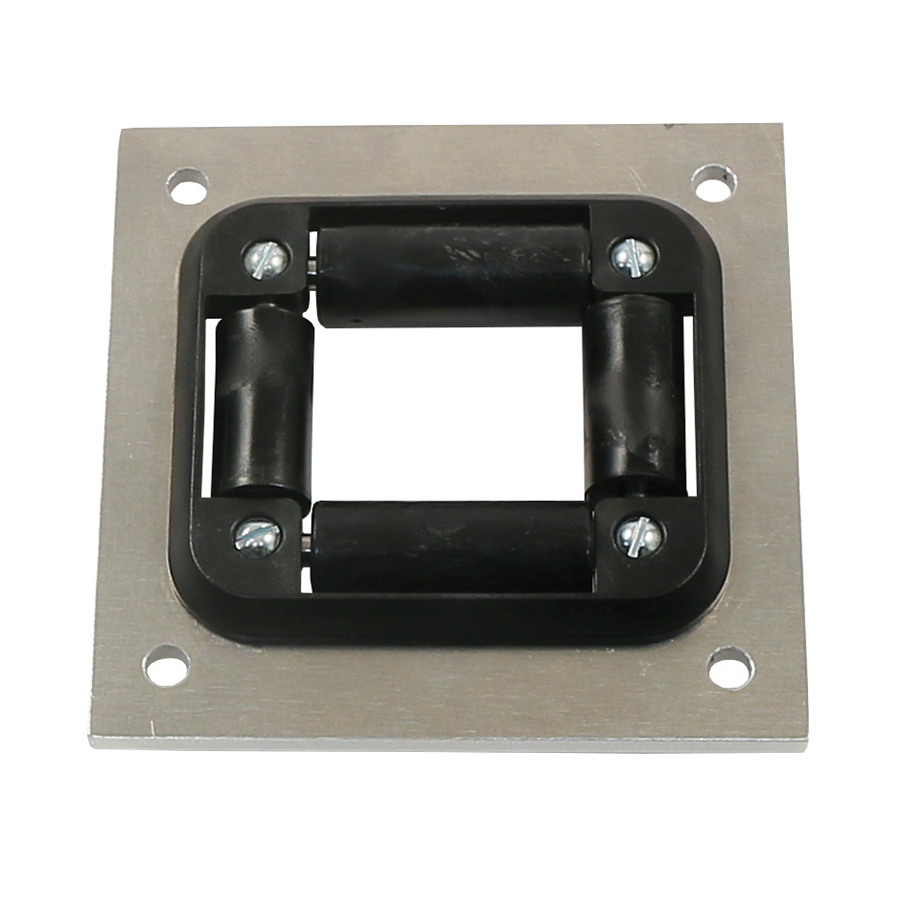

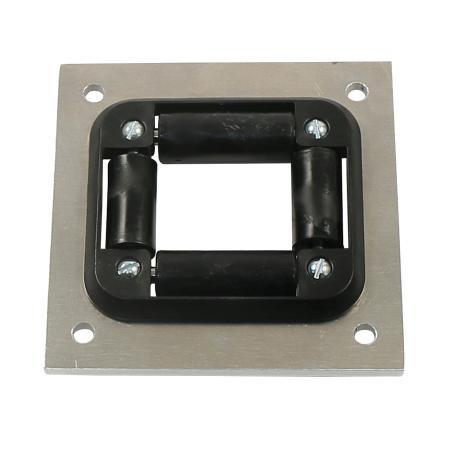

The four-way roller guide assemblies are for use with reels on cabinet door openings and for similar locations where sharp edges may cut or damage the hose. The four-way design permits pulling or retracting hose at any angle. Nylon rollers are mounted on an aluminum frame with pre-drilled mounting holes.
| Part Number | S600168 |
| Weight | 0.75 lbs |
| Roller Material | Nylon |
| Direction | Multi Position |
| Spool Size | Varies |
| Hose O.D. | 0.900" - 1.38" |
| UPC | 699567031413 |
| A | 1.5" |
| B | 2" |
| C | 5.125" |
| D | 5.125" |
| F | 4" |
| E | 4" |
