7850 OLP121 – 1/2 in. x 50 ft. Premium Duty Hose Reel
Reelcraft’s Series 7000 hose reel is very robust and ideal for the most demanding applications. The reel’s base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.
- Individually powder-coated steel components offer maximum protection from premature corrosion
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
- Low-pressure PVC hose included; hose is for air or water service only
- Guide arm adjusts to seven positions
- Additional Series 7000 reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
- Made in the USA

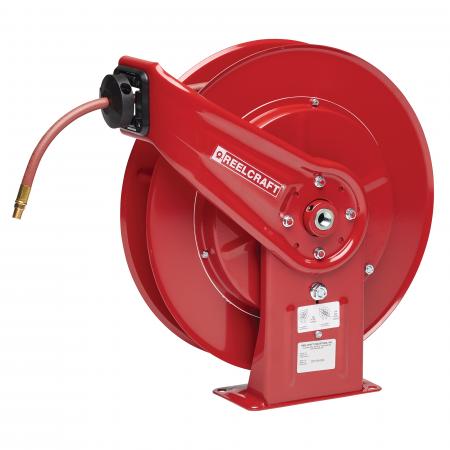

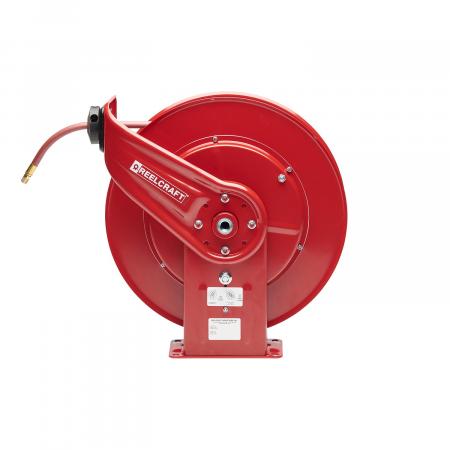

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
Reel Specifications and Dimensions
Additional information
| Weight | 47 lbs |
|---|---|
| Series | |
| Hose I.D. | |
| Hose O.D. | |
| Hose Length | |
| Pressure | |
| Hose End | |
| Inlet | |
| Reel Outlet | |
| Hose Included | |
| Max Temperature | |
| UPC | 699567006626 |
| A | 20.25" |
| B | 19.75" |
| C | 7.8125" |
| D | 3.875" |
| E | 7" |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Buna |
Video
FAQs
How do I increase or reduce spring tension?
Can I adjust the guide opening position on an enclosed hose reel?
Can my spring driven reel be made constant tension?
How do I replace the latch spring on my Series 7000 reel?
How do I install a new drive spring and set pre-turns?
How many GPM’s will I get from my hose?
Air pressure or fluid flow restricted
Why will my hose reel or cord reel not retract?
