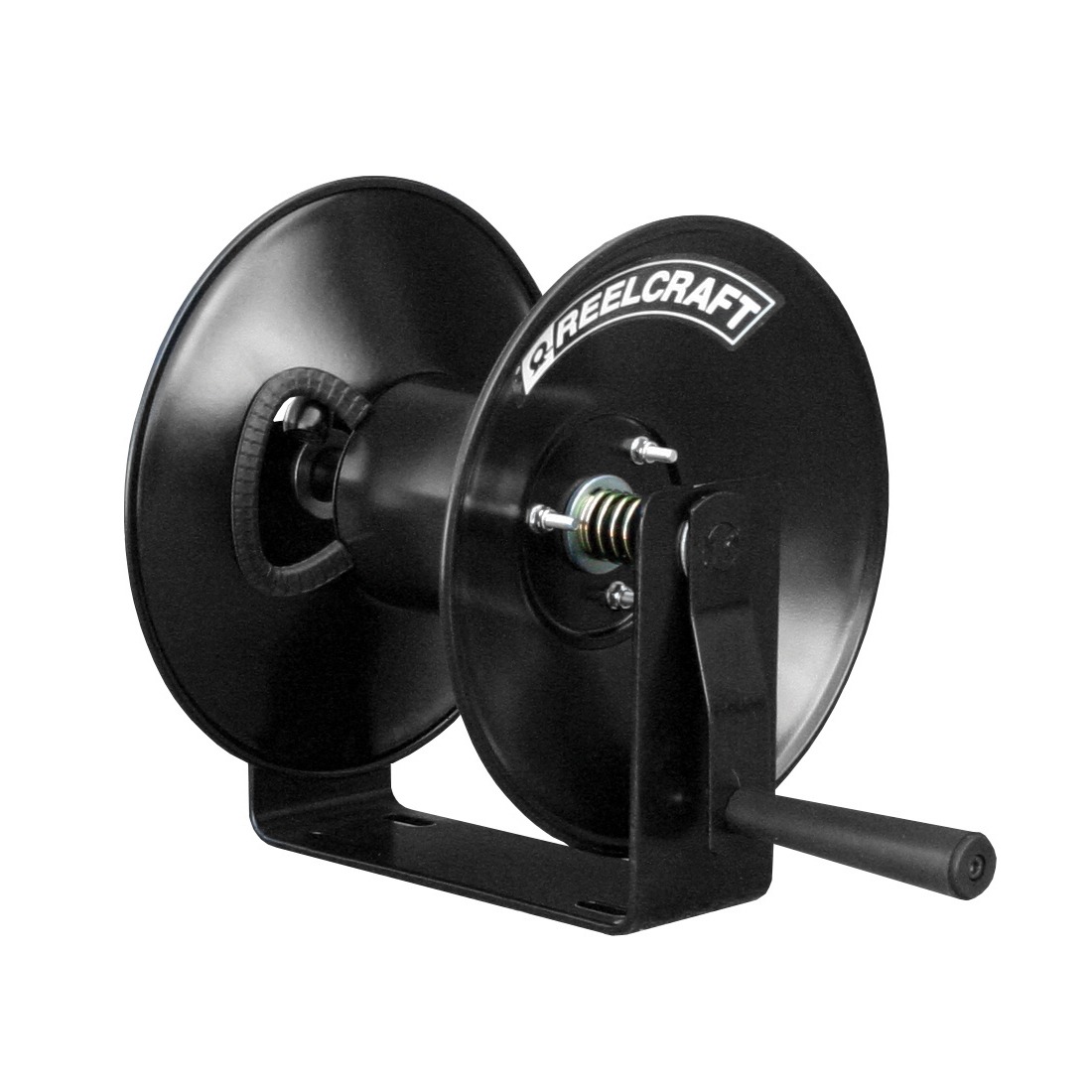

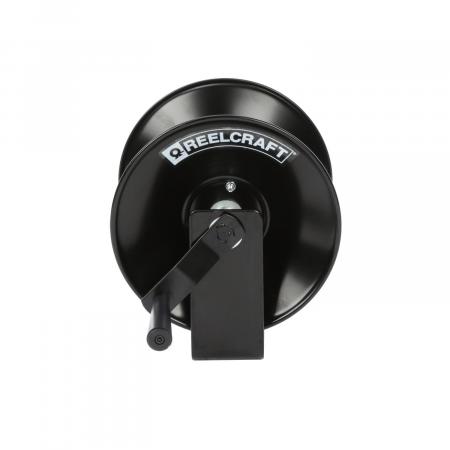

CU8050LN – 1/2 in. x 50 ft. Light Duty Hand Crank Hose Reel
Reelcraft’s Series C hose reels are designed for lighter-duty applications that require longer lengths of low pressure air or water hose. Hand crank with a balanced brass swivel and brass inlet, the Series C is the product of lighter weight components and forward-thinking design. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature a drag break to prevent de-spooling when reel is not in use. The Series C is an economical choice for storing and retrieving hose.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Low cost – The simple and effective design allows the economical storage and retrieval of hose.
- Easy to operate – The rotating handle allows the hose to be retrieved with ease.
- Easy to mount ? The 4 slotted holes in the base make the reel easy to mount and adjust.
Reel Specifications and Dimensions
Fluid Path Materials
|Internal Fluid Path
How many GPM’s will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose / reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils it is necessary to know the operating temperature, pressure and fluid viscosity.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
