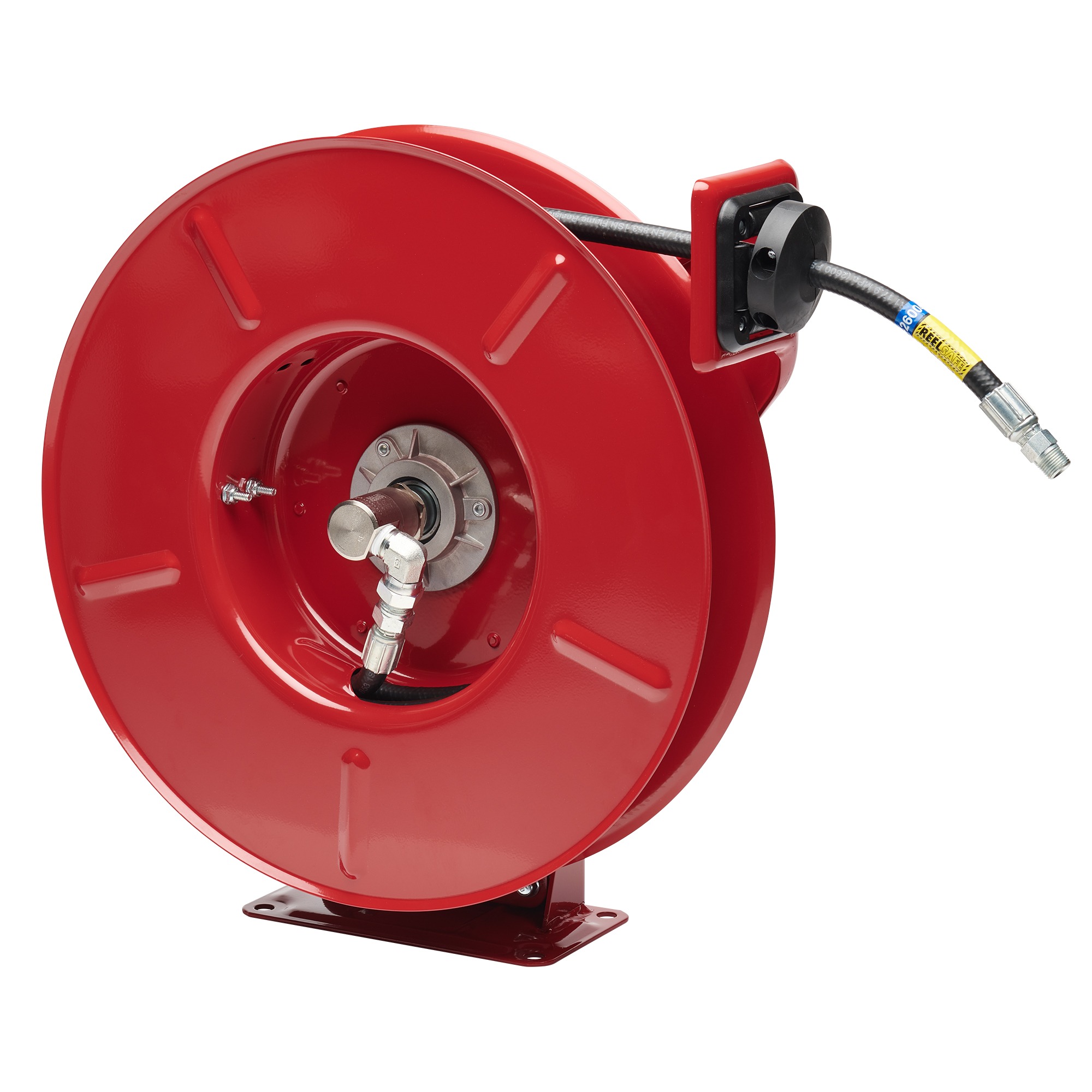

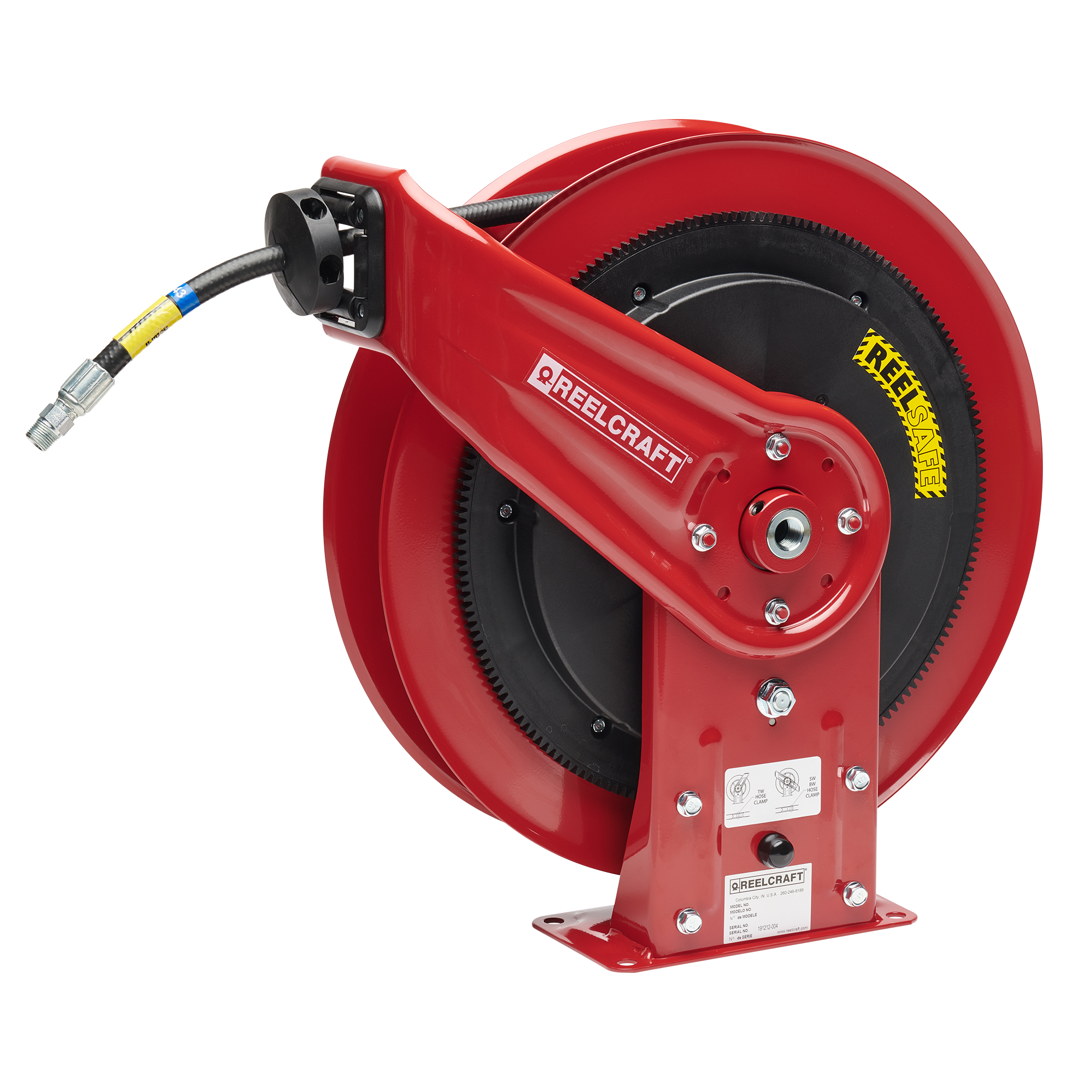

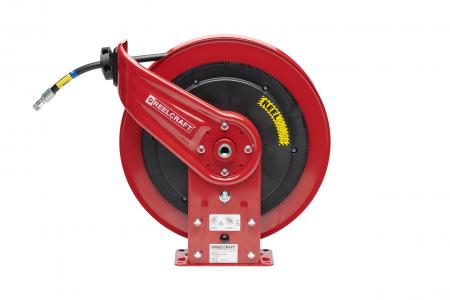

RS7450 OHP – 1/4 in. x 50 ft. REELSAFE® Controlled Return Hose Reel

The new REELSAFE® Series RS7000 controlled return hose reel is an expansion of the rugged design that set the industry standard. With safety at the forefront, REELSAFE® pays out like a traditional reel, though is specifically engineered to retract the hose at an average walking speed. The centrifugal clutch, integral to the reel base, greatly decelerates the hose retraction speed by up to 83% vs. a Series 7000 reel.

  • Retracts at 2 miles per hour – designed to match the average human walking speed of 2 to 3 miles per hour
  • Integral clutch creates a consistent retraction speed regardless of fluid or environmental temperatures
  • Safely protects personnel and equipment
  • Requires no field adjustment
  • Made in USA
SKU: RS7450 OHP Category:

Reel Specifications and Dimensions

Additional information

Weight58 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Hose End

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567026914

A20.25"
B19.75"
C7.8125"
D3.875"
E7"


Fluid Path Materials

Internal Fluid PathSteel
Swivel AssemblySteel
Swivel SealAflas

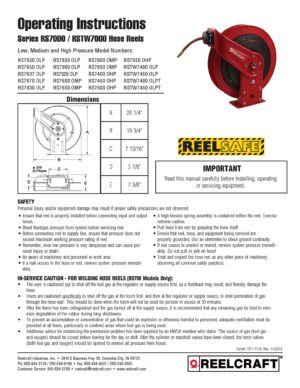

Literature and Service Manual

FAQs

How do I increase or reduce spring tension?

Can I adjust the guide opening position on an enclosed model hose reel?

Can my spring driven reel be made constant tension?

How do I replace the latch spring on my 7000 Series reel?

How do I install a new drive spring and set pre-turns?

How many GPM’s will I get from my hose?

Air pressure or fluid flow restricted

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
