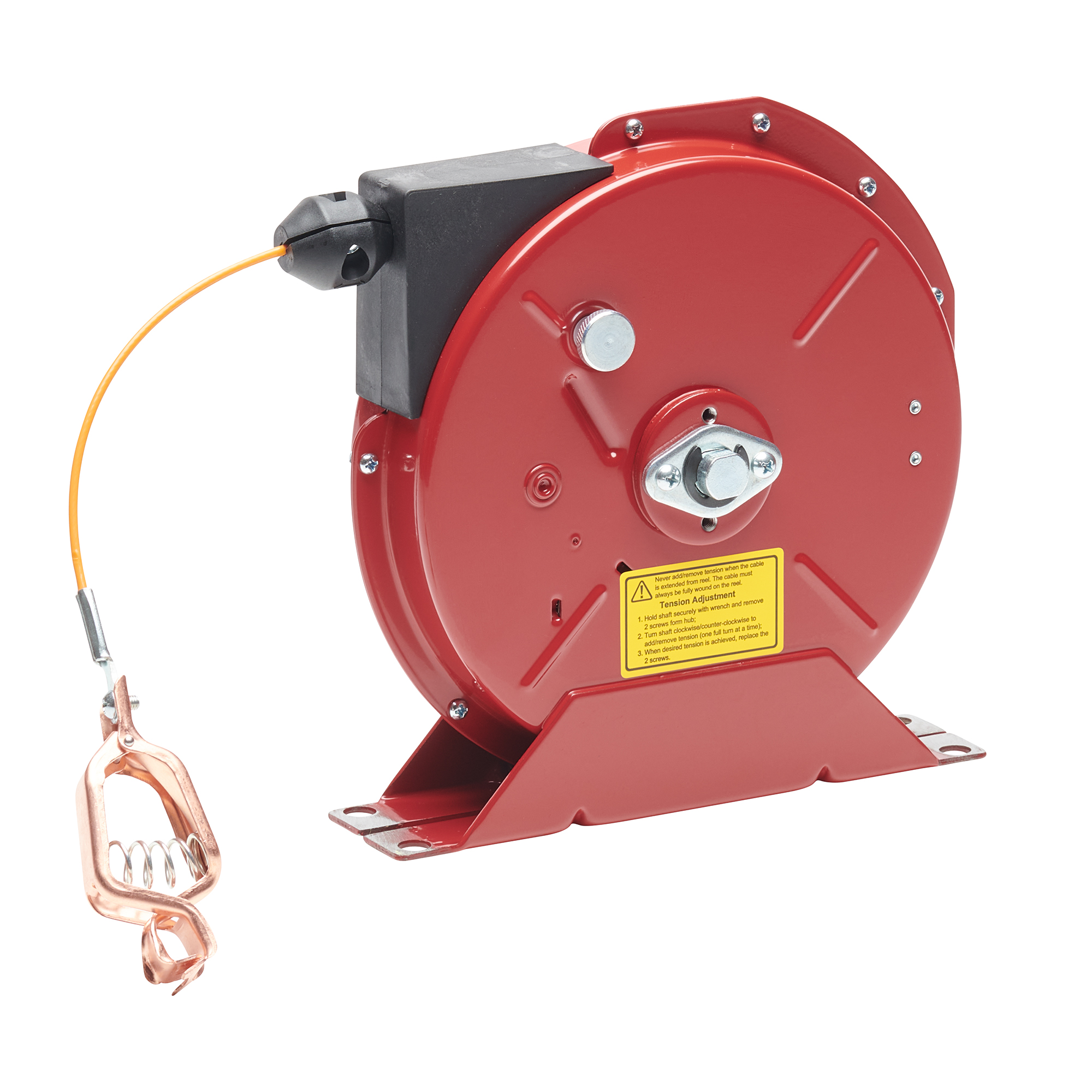

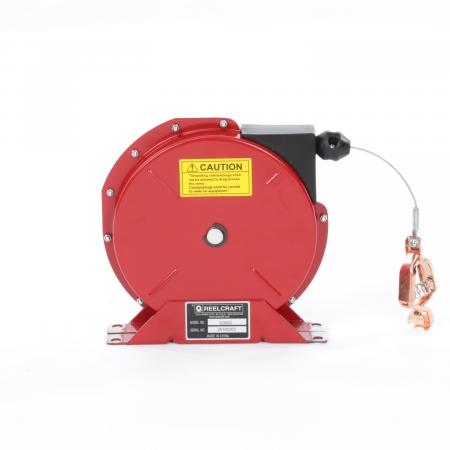

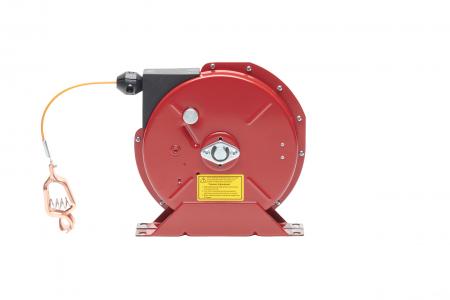

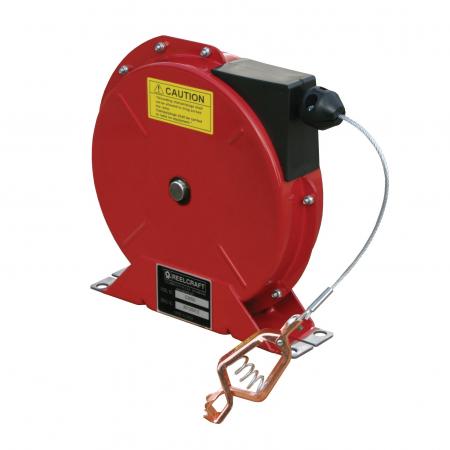

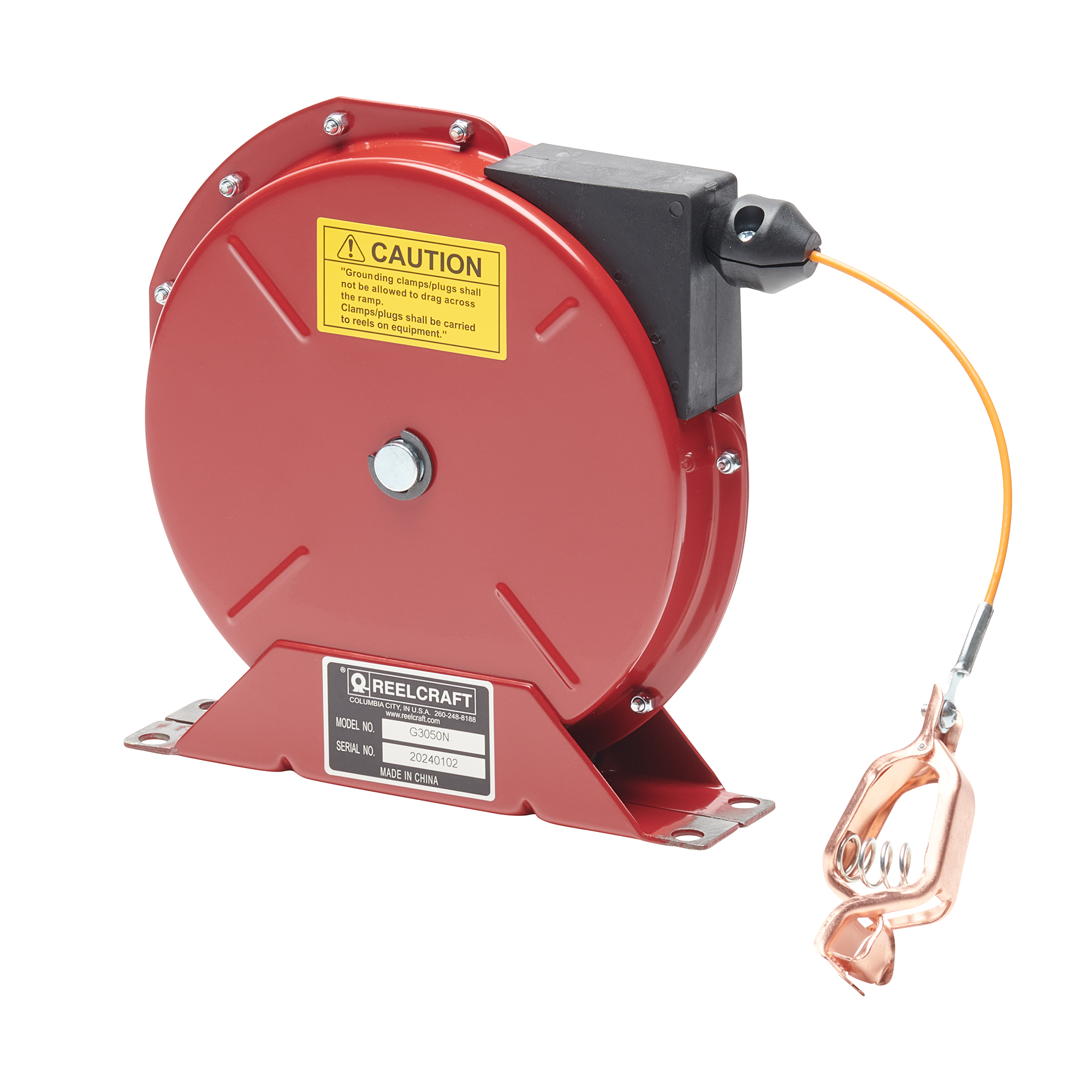

G 3050 N – Heavy Duty Spring Retractable Bonding Reel

Reelcraft’s static discharge reels are used to ground equipment operating in hazardous atmospheres. When properly clamped to the ground, the static discharge reel dissipates static electrical buildup, reducing the chances of sparking and the potential for explosion. *Nylon covered cable (1/8″ O.D.).

  • Strength – Made from industrial grade carbon steel.
  • Compact design – Reels require little mounting space for applications where space is a critical requirement.
  • Corrosion resistance – Steel components are powder coated for superior corrosion resistance. Steel cable available with nylon coating for longer service life.
  • Easily adjust spring tension – Loosening two screws allows user to add or remove spring tension.
SKU: G 3050 N Category:

Reel Specifications and Dimensions

Additional information

Weight 12 lbs
Series

Cable Length

Clamp Rating

Max Temperature

Drive Type

UPC

699567002826

Cable Notes

Hi-vis orange nylon covered cable

A8.875"
B8.625"
C7.875"
D1.5"
E3.375"
