THA7630 OMP – 3/8 in. x 30 ft. Twin Hydraulic Hose Reel
The hydraulic series hose reel incorporates contemporary engineering and manufacturing techniques to give a trouble-free performance. Used for medium pressure hydraulic applications, Series TH hose reels are ideal for operating hydraulic cylinders, tools, and equipment. Reels are all-steel construction and compact for applications with critical space requirements.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Long-life drive spring – Declutching arbor virtually eliminates the possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
- Constant tension or pos-i-latch spool mechanism
- Compact design for critical space requirements

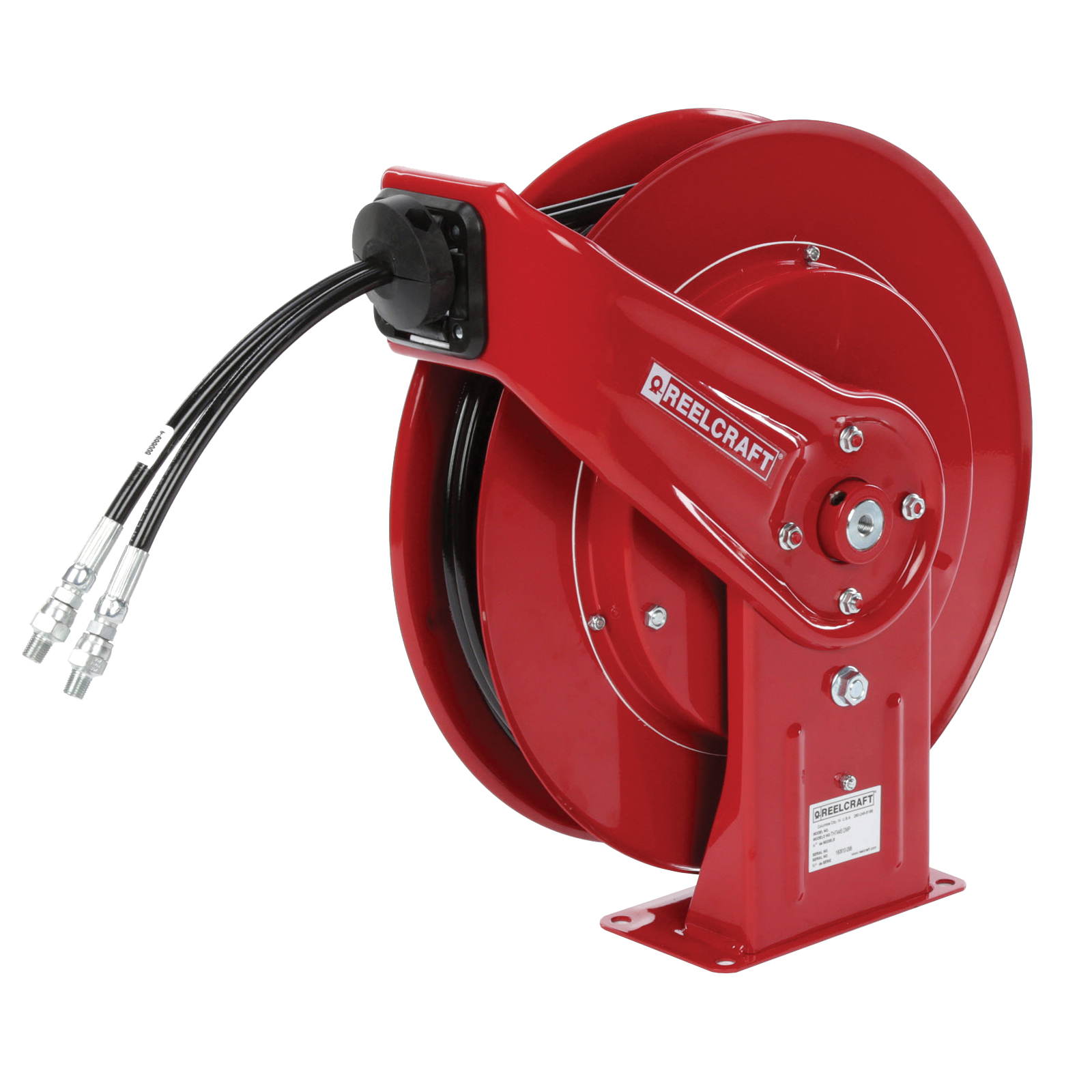

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
Reel Specifications and Dimensions
Fluid Path Materials
|Internal Fluid Path||Steel|
600521 - Adjustable Bumper Stop
S600608 - 340° Pivot Base
600626 - Wall Mounted Universal Swing Bracket
S602097-1 - Swivel Assembly

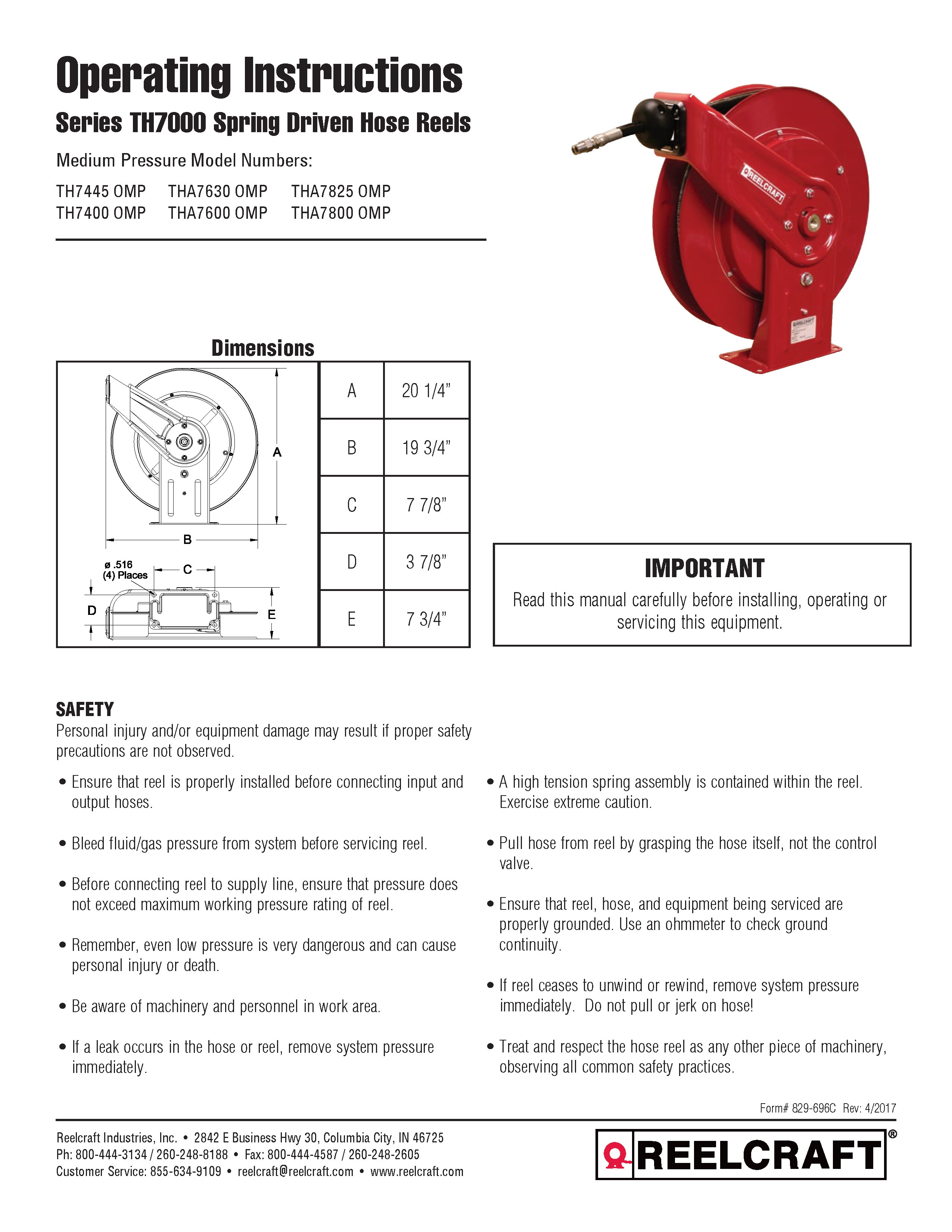

Literature and Service Manual
