The new REELSAFE™ Series RS7000 is an expansion of the rugged design that set the industry standard. With safety at the forefront, REELSAFE™ pays out like a traditional reel, though it is specifically engineered to retract the hose at an average walking speed. The centrifugal clutch, integral to the reel base, greatly decelerates the hose retraction speed by up to 83% vs. a Series 7000 reel.
- Retracts at 2 miles per hour – designed to match the average human walking speed of 2 to 3 miles per hour
- Integral clutch creates a consistent retraction speed regardless of fluid or environmental temperatures
- Safely protects personnel and equipment
- Requires no field adjustment
- Thru-shaft fluid path eliminates hose interference during reel rotation
- 7 position hose guide arm for multiple mounting configurations

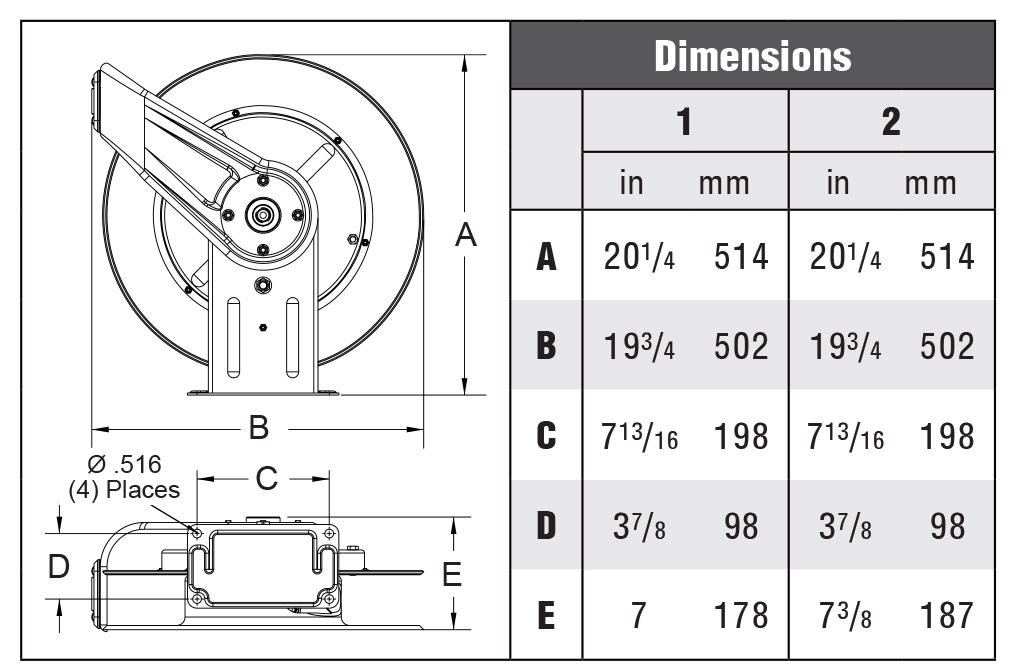

- Reel dimensions and mounting pattern identical to the Series 7000
- Made in USA
| Model | Shipping Weight | Hose I.D. | Hose Length | Max Pressure | Hose Included | Size Index # |
|---|---|---|---|---|---|---|
| Low Pressure Air / Water Hose Reels | ||||||
| RS7600 OLP | 43 lbs. | 3/8 in. | 50 ft. | 500 psi | No | 1 |
| RS7650 OLP | 46 lbs. | 3/8 in. | 50 ft. | 300 psi | Yes | 1 |
| RS7607 OLP | 43 lbs. | 3/8 in. | 70 ft. | 500 psi | No | 1 |
| RS7670 OLP | 50 lbs. | 3/8 in. | 70 ft. | 300 psi | Yes | 1 |
| RS7800 OLP | 44 lbs | 1/2 in. | 50 ft. | 500 psi | No | 1 |
| RS7850 OLP | 50 lbs | 1/2 in. | 50 ft. | 300 psi | Yes | 1 |
| RS7900 OLP | 47 lbs. | 3/4 in. | 25 ft. | 500 psi | No | 1 |
| RS7925 OLP | 50 lbs. | 3/4 in. | 25 ft. | 250 psi | Yes | 1 |
| Medium Pressure Oil Hose Reels | ||||||
| RS7600 OMP | 46 lbs. | 3/8 in. | 50 ft. | 3000 psi | No | 1 |
| RS7650 OMP | 58 lbs. | 3/8 in. | 50 ft. | 2600 psi | Yes | 1 |
| RS7800 OMP | 46 lbs. | 1/2 in. | 50 ft. | 3000 psi | No | 1 |
| RS7850 OMP | 60 lbs. | 1/2 in. | 50 ft. | 3000 psi | Yes | 1 |
| High Pressure Grease Hose Reels | ||||||
| RS7400 OHP | 46 lbs. | 1/4 in. | 50 ft. | 5000 psi | No | 1 |
| RS7450 OHP | 58 lbs. | 1/4 in. | 50 ft. | 5000 psi | Yes | 1 |
| RS7600 OHP | 49 lbs. | 3/8 in. | 50 ft. | 5000 psi | No | 1 |
| RS7650 OHP | 63 lbs. | 3/8 in. | 50 ft. | 4800 psi | Yes | 1 |
| Oxygen / Acetylene (only) Hose Reels | ||||||
| RSTW7400 OLP | 45 lbs. | 1/4 in. | 50 ft. | 200 psi | No | 2 |
| RSTW7450 OLP | 53 lbs. | 1/4 in. | 50 ft. | 200 psi | Yes | 2 |
| Welding Gas – Oxygen / Acetylene, Mapp, Propane, Natural, and Fuel Gas (T-Grade) Hose Reels | ||||||
| RSTW7400 OLPT | 45 lbs. | 1/4 in. | 50 ft. | 200 psi | No | 2 |
| RSTW7450 OLPT | 53 lbs. | 1/4 in. | 50 ft. | 200 psi | Yes | 2 |
