7650 ELP – 3/8 in. x 50 ft. Heavy Duty Enclosed Hose Reel

Reelcraft's Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Consult Reelcraft for other products and hoses. Guide arm adjusts to 7 positions.

  • Extra protection – Reels feature a steel enclosure that offers an additional level of protection for the hose from potentially harmful foreign debris. These reels are designed such that removing the cover on either side will allow access to the majority of serviceable parts.
  • Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
  • Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.

Reel Specifications and Dimensions

Additional information

Weight 60 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Hose End

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567001218

A20.875"
B21.125"
C7.8125"
D3.875"
E7.625"


Fluid Path Materials

Shaft MaterialSteel

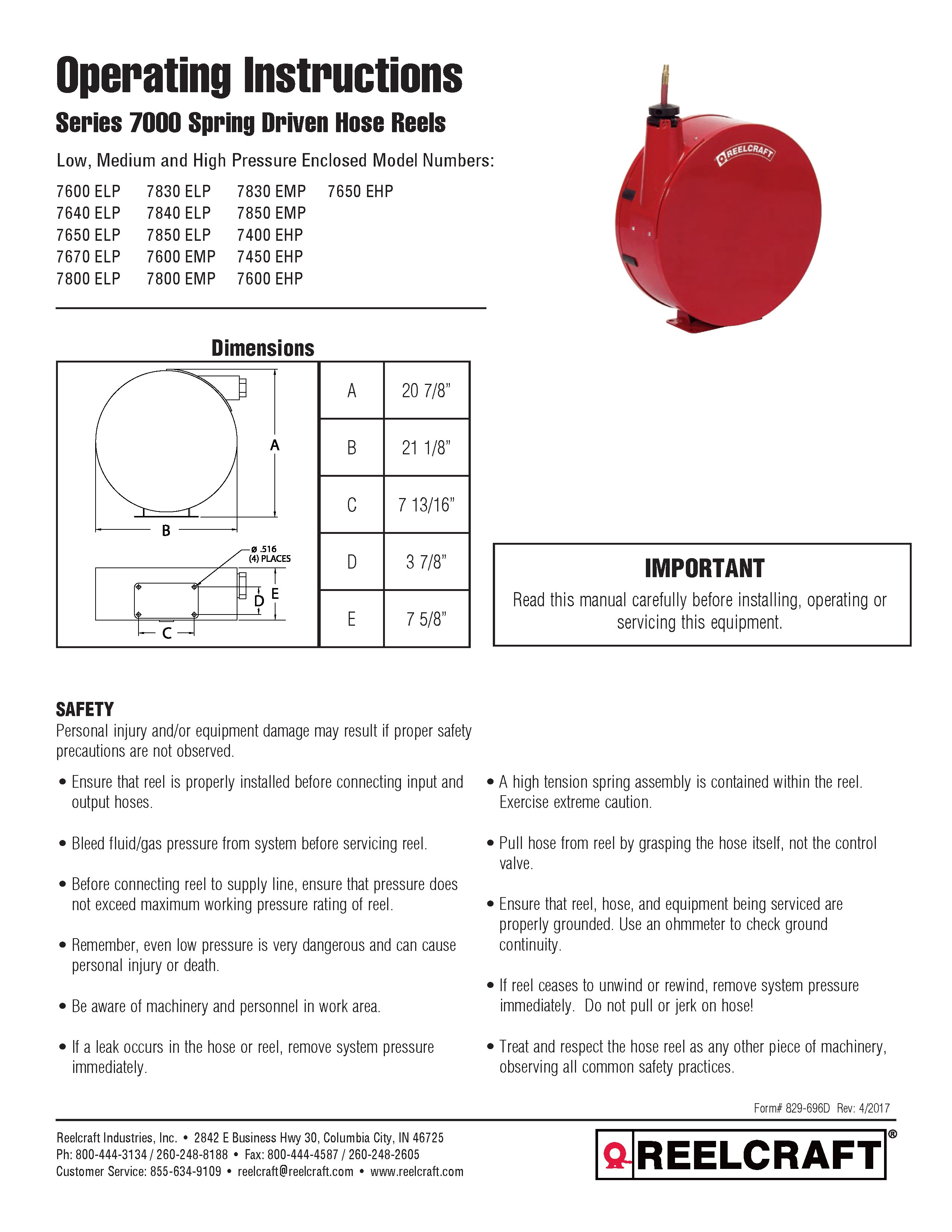

Literature and Service Manual

FAQs

How do I increase or reduce spring tension?

Can my spring driven reel be made "constant tension"?

How do I replace the latch spring on my 7000 Series reel?

How do I install a new drive spring and set pre-turns?

How many GPM's will I get from my hose?

Can I adjust the guide opening position on an enclosed model hose reel?

Air pressure or fluid flow restricted

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
