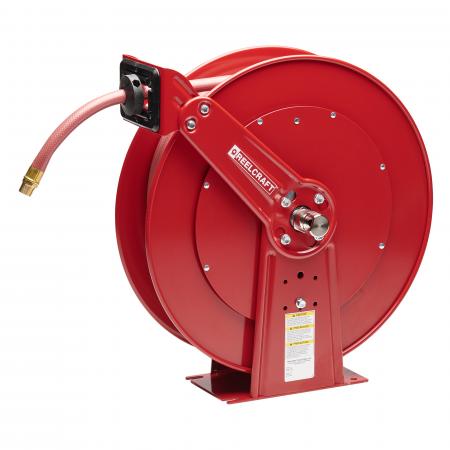

83050_OLP

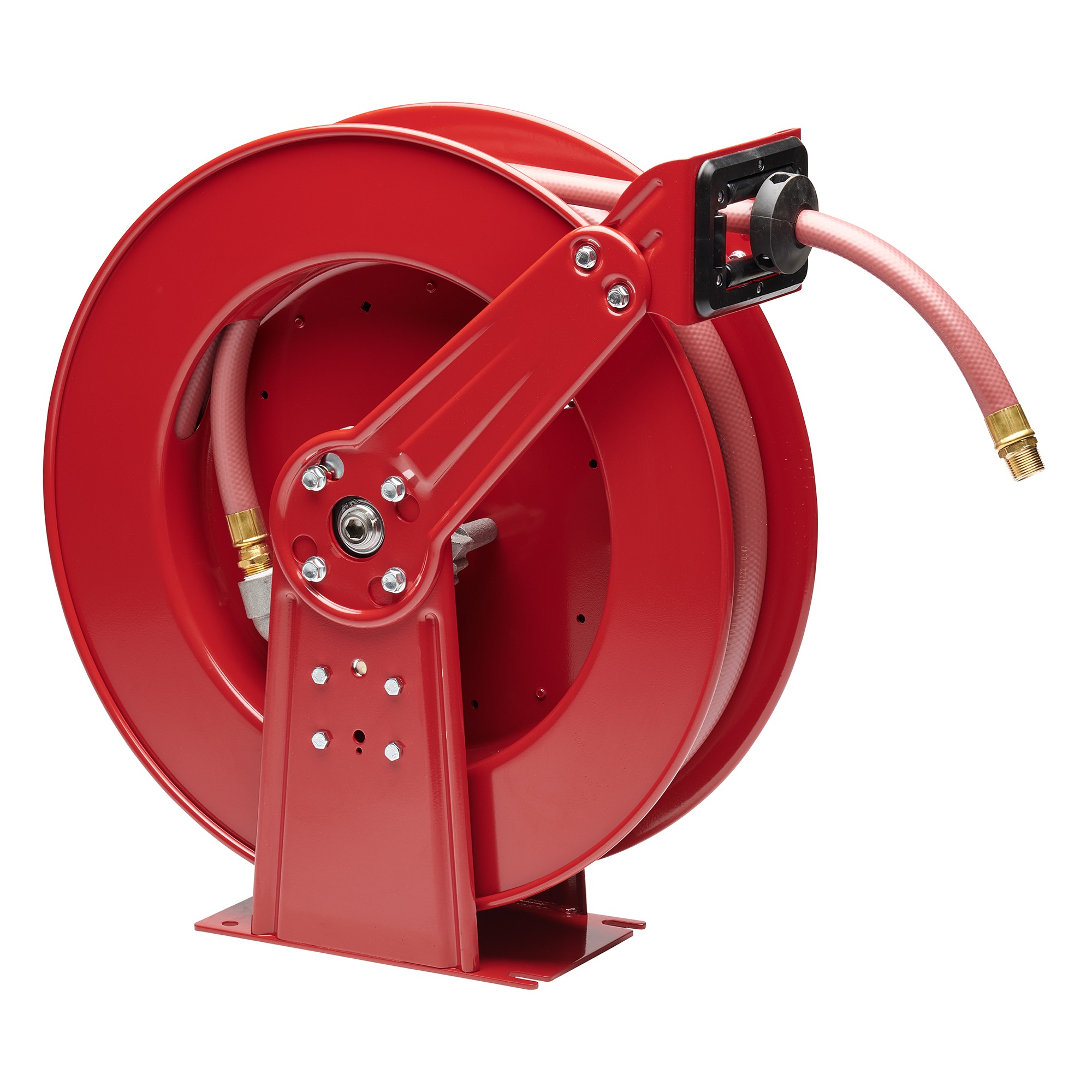

360 83050_OLP_BACK

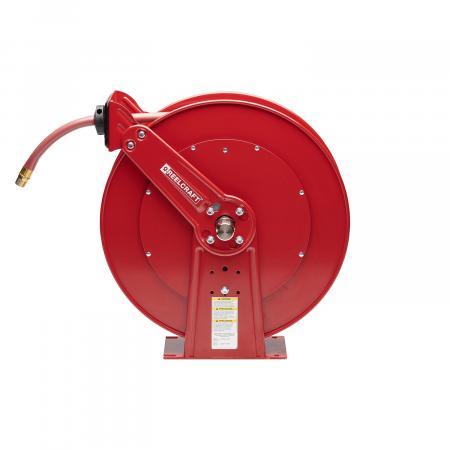

83050 OLP – 3/4 in. x 50 ft. Premium Duty, Dual Pedestal Hose Reel

Reelcraft's Series 80000 and D80000 spring retractable hose reels incorporate the most current design and manufacturing techniques for long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of applications.

  • Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
  • Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas for maximum service life.
  • Quality finish and corrosion resistant – Individually powder coated components offer maximum protection from premature corrosion.

Reel Specifications and Dimensions

Additional information

Weight88 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Hose End

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567000280

A25.375"
B24"
C8.125"
D10.5"
E10"
F6"


Fluid Path Materials

Internal Fluid PathAluminum
Swivel AssemblySteel
Swivel SealAflas



Literature and Service Manual

Video

FAQs

How do I increase or reduce spring tension?

Can my spring driven reel be made constant tension?

How do I install a new drive spring and set pre-turns?

How many GPM’s will I get from my hose?

Air pressure or fluid flow restricted

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
