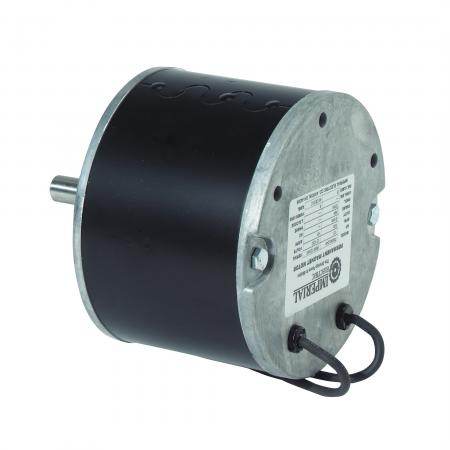

260450 – 24 V DC Electric Motor
Rewind motors are used to drive chain and sprocket rewind mechanisms on reels equipped to handle a motor.
| Part Number | 260450 |
| Weight | 12.8 lbs |
| Drive Type | 24 V DC Motor |
| Explosion Proof | No |
| Specifications | Reversible type, 1/4 HP |
| UPC | 699567004073 |
Required Accessories
 | 370018 – Starting Solenoid Part Number: 370018 Explosion Proof: No 24 V DC starting solenoid for activation of motor |
 | S260422 – Circuit Breaker Part Number: S260422 Explosion Proof: No 40 AMP circuit breaker; the manual reset button must be pressed firmly to reset |
 | 260424 – Push Button Switch Part Number: 260424 Explosion Proof: No Momentary contact push button switch with rubber cap, 12/24 V DC, non-explosion proof. |
Optional Accessories
 | 600868 – Push Button Switch with Speed Control Part Number: 600868 Explosion Proof: No DC push button switch with speed control; 40 AMP circuit breaker, up to 2/3 HP Installation Instructions |
 | 600867 – Push Button Switch with Speed Control Part Number: 600867 Explosion Proof: No DC push button switch with speed control; 25 AMP, up to 1/3 HP Installation Instructions |
 | 600811 – Push Button Switch Part Number: 600811 Explosion Proof: No 12/24 V DC push button switch; up to 1/3 HP; breaker and relay Installation Instructions |
 | S600808 – Push Button Switch Part Number: S600808 Explosion Proof: No 600811 switch with a bracket for Series 30000 reels; 12/24 V DC Installation Instructions |
 | 600866 – Speed Control Switch Part Number: 600866 Explosion Proof: No 12/24 V DC speed control switch for use with any DC motor. Installation Instructions |
