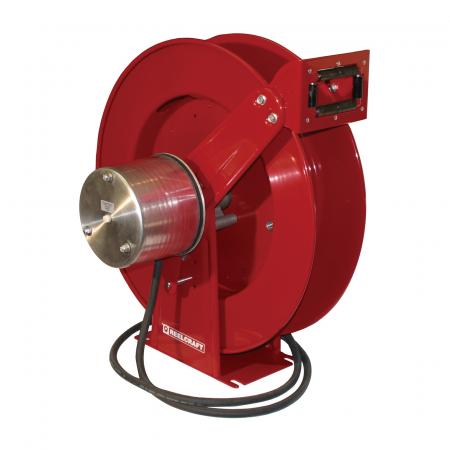

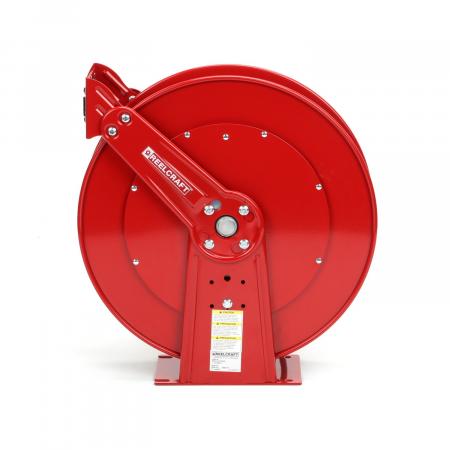

WCH80001 – Ultimate Duty 700 Amp Cable Welding Reel
Reelcraft's Series WC welding cable reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity. They have a continuous current path through a live 700 AMP rated enclosed slip ring.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
- Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Stores cable when not in use, eliminating tangled, kinked welding cables.
Reel Specifications and Dimensions
|Cable Size #3|
|Cable Size 4/0|
600801 - 340° Pivot Base
600980 - Wall Mounted Universal Swing Bracket
