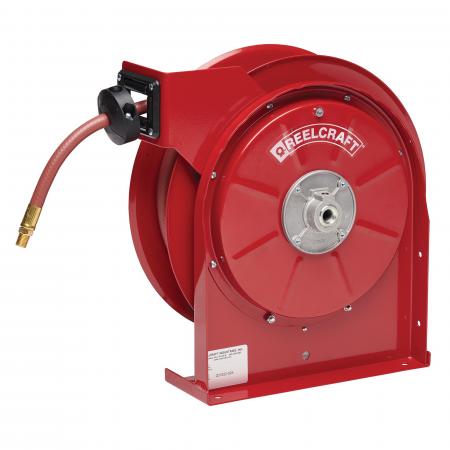

5635 OLP – 3/8 in. x 35 ft. Premium Duty Hose Reel

Series 5000 reels are durable and compact for a wide range of applications with critical space requirements.

  • Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • The bent tube swivel design offers a smooth hose transition onto the spool
  • Swivel is nested inside the spool for protection from impact and the environment
  • The reliable speed latch allows for positive locking of the spool in two positions per rotation
  • All steel components are powder coated for maximum corrosion resistance
  • Robotically welded steel base offers maximum strength and consistent quality
  • Made in the USA

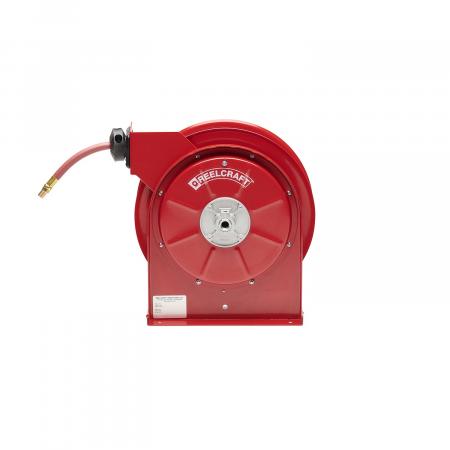

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

Reel Specifications and Dimensions

Additional information

Weight25 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Hose End

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567000150

A14.375"
B14.25"
C9.75"
D2.5"
E6.125"


Fluid Path Materials

Internal Fluid PathSteel
Swivel AssemblyCopper
Swivel SealBuna
