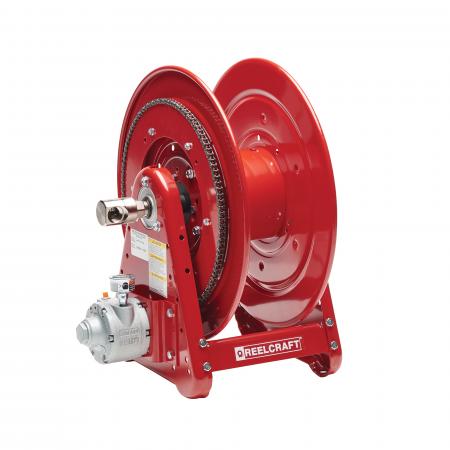

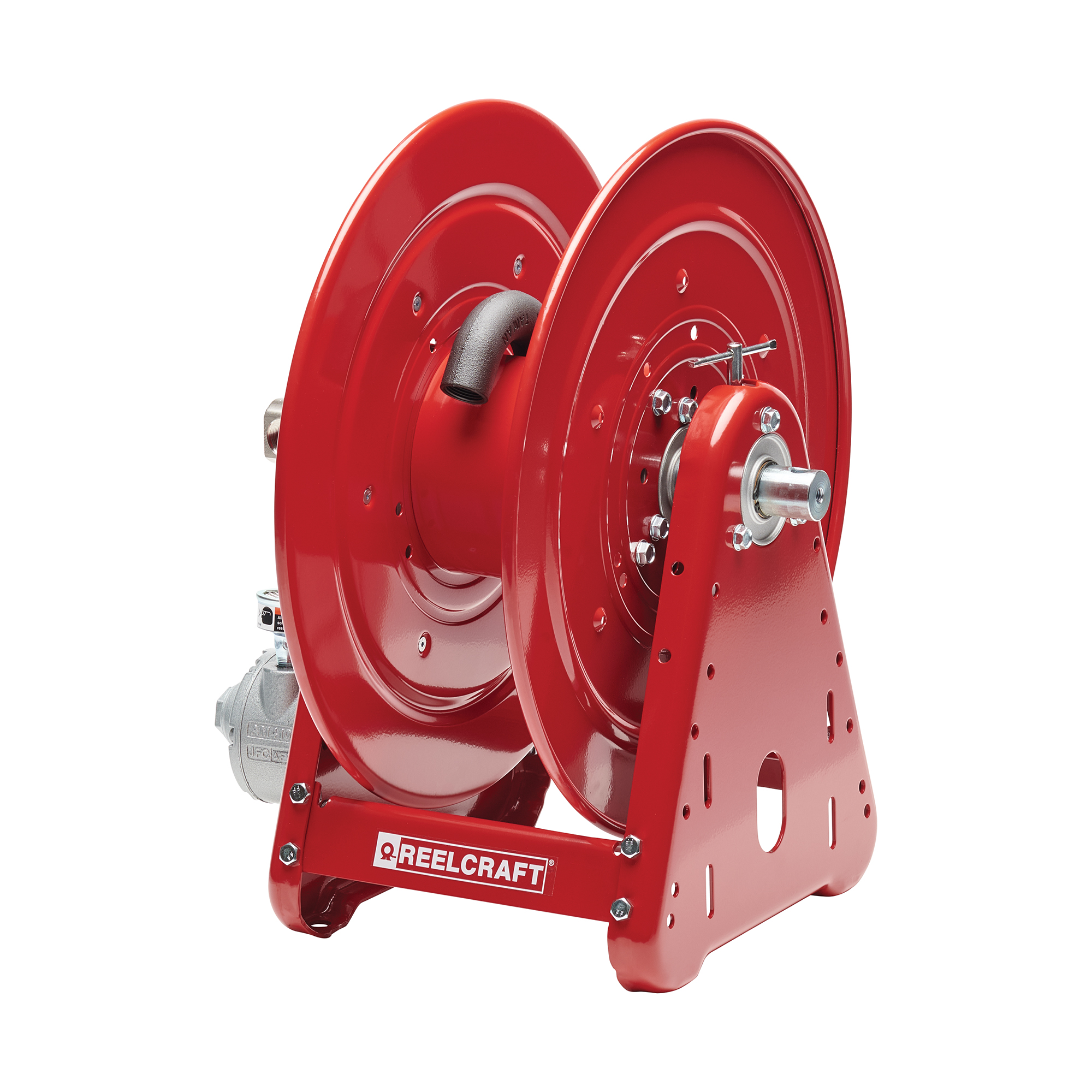

AA32106 L4A – 1/2 in. x 100 ft. Premium Duty Air Motor Driven Hose Reel
Reelcraft Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. The all-bolted, unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure the longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
- Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.
- Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion.
- Motor options – Multiple motor options provide an easy method to rewind long lengths of hose.
- This model is supplied with a 4 AM motor for up to 1½ hp.
- Made in the USA
Reel Specifications and Dimensions
Fluid Path Materials
|Internal Fluid Path||Ductile Iron|
260428 - 4 AM Air Motor
600801 - 340° Pivot Base
S600888-1 - Swivel Assembly
Literature and Service Manual
Pressure drop / flow rate charts and graphs
Design improvement and material change for roller guides
Hand crank to 12V electric motor conversion requirements
Hand crank to 24V electric motor conversion requirements
Hand crank to 4A and 6A air motor conversion requirements
Hand crank to bevel crank conversion requirements
Hand crank to explosion proof motor conversion requirements
Can hand crank reels be converted to motor driven reels?
Yes, Reelcraft has a number of conversion kits. The reel model and motor type will need to be verified. Listed below are some of the available conversion kits for Series 30000 reels. Contact customer service for more support.
A switch will also be required for all motor driven reels. Reelcraft has several types of switches and speed controls available. These switches are motor size specific and must be wired properly for the hose reel to function correctly. Have your hose reel model number ready and consult customer service for switch recommendations.
Hand Crank to Bevel Crank – Kit #S600765
CA33112 L to BA33112 L
Hand Crank to 12V Electric – Kit #S600768
CA33112 L to EA33112 L12D
Hand Crank to 24V Electric – Kit #S600771
CA33112 L to EA33112 L24D
Hand Crank to Hydraulic – Kit #S600780
CA33112 L to HA33112 L
Hand Crank to 4A Air Motor – Kit #S600767
CA33112 L to AA33112 L4A
Hand Crank to 6A Air Motor – Kit #S600770
CA33112 L to AA33112 L6A
Hand Crank to 115 V Explosion Proof Motors – Kit #S600781
CA33112 L to EA33112 L10AX
Hand Crank to 12 V Explosion Proof Motors – Kit #S600782
CA33112 L to EA33112 L12DX
Hand Crank to 24 V Explosion Proof Motors – Kit #S600783
CA33112 L to EA33112 L24DX
How many GPM’s will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose / reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils it is necessary to know the operating temperature, pressure and fluid viscosity.
What does the solenoid do and why might I need one?
A solenoid is required if you are using a 12 / 24 VDC motor. Much like in an automobile, the solenoid allows for the use of a light duty, low amperage switch to be used to operate a motor. A relatively large surge of electrical current is required to operate the motor. This surge is allowed by the solenoid to go straight from the battery to the motor while bypassing the switch.
Note: Our latest integrated switch boxes have the solenoid and circuit breaker built-in and do not require an additional external solenoid. Refer to our Motor Accessories page for a complete listing of our switches and other accessories.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
How do I slow down the speed of my motor driven reel?
Reelcraft offers a variety of weatherproof combination switch and speed control devices to satisfy 12 V DC, 24 V DC, 115 V AC, and also 230 V AC motors. These switch/speed controls offer motor on-off, fixed, or variable speed control without loss of motor torque. They also offer motor reversing capability when required.
Universal switch/speed control mounting brackets are also available. Visit our Motor Accessories page to see our motor switches and speed control options. Please consult Reelcraft customer service or engineering to best select the component to meet your needs.
Refer to the drawing below for help on wiring an AC motor circuit.
Refer to the drawing below for help on wiring a DC motor circuit.
