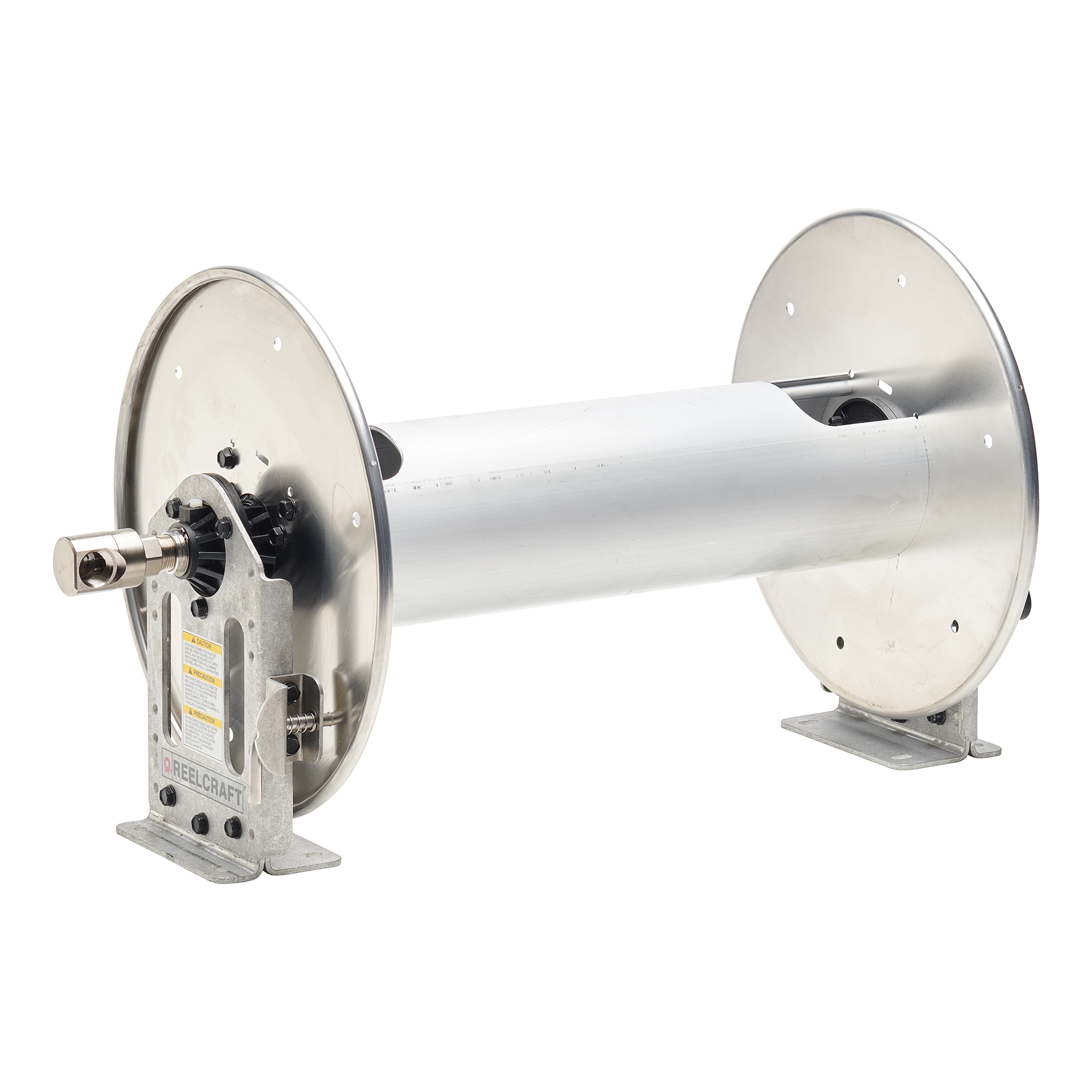

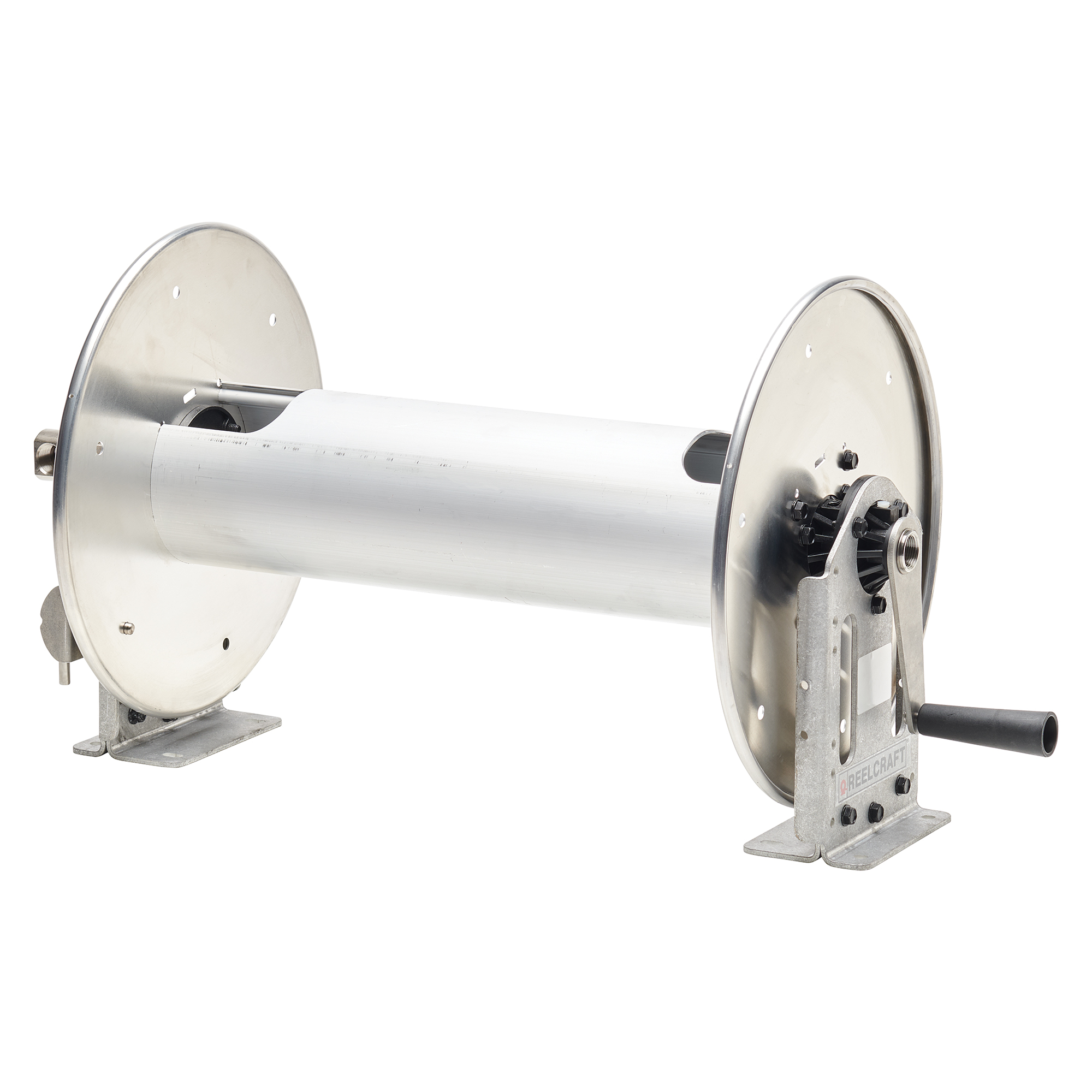

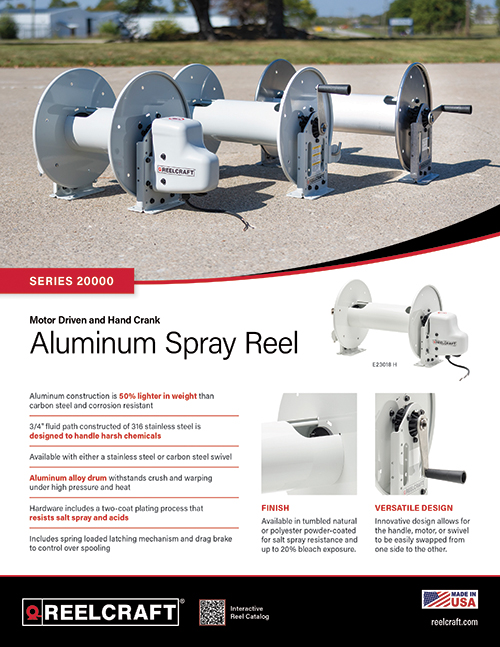

C23022 H 310 – Heavy Duty Aluminum Hand Crank Hose Reel
- Aluminum construction is 50% lighter in weight than carbon steel and corrosion resistant.
- Hardware includes a two-coat plating process that resists salt spray and acids.
- 3/4″ fluid path constructed of 316 stainless steel is designed to handle harsh chemicals. This model includes a carbon steel swivel rated to 4500 PSI.
- Includes spring loaded latching mechanism and drag brake to control over spooling.
- Innovative design allows for the handle or swivel to be easily swapped from one side to the other.
- Drive type – hand crank rewind
- Hose not included
- Made in the USA
10 business day estimated lead time. For large quantities, please consult Reelcraft Customer Service.
Reel Specifications and Dimensions
Additional information
| Weight | 28 lbs |
|---|---|
| Series | |
| 3/8" Hose Capacity | |
| 1/2" Hose Capacity | |
| 5/8" Hose Capacity | 300' |
| 3/4" Hose Capacity | |
| Pressure | |
| Inlet | |
| Reel Outlet | |
| Hose Included | |
| Max Temperature | |
| UPC | 699567031864 |
| Carton Dimensions | 24" x 18" x 18" |

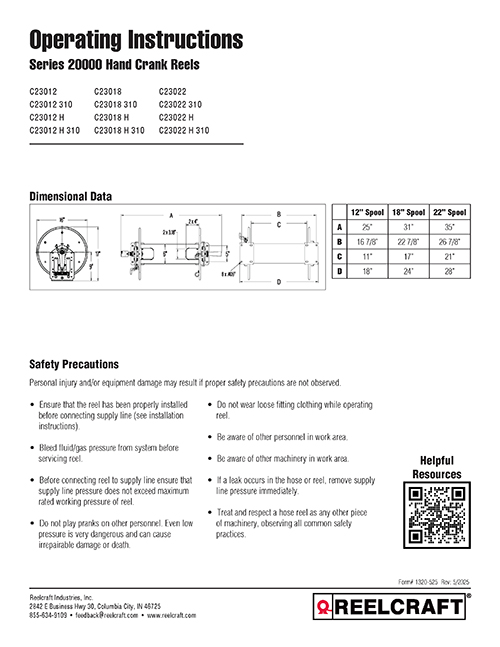

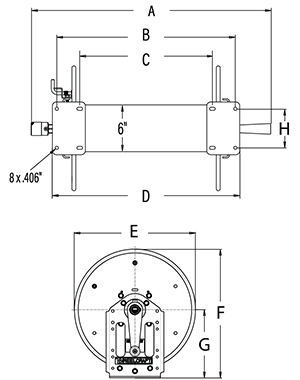

| A | 35" |
| B | 26.88" |
| C | 21" |
| D | 28" |
| E | 16" |
| F | 17" |
| G | 9" |
| H | 5" |
Fluid Path Materials
| Internal Fluid Path | Stainless Steel |
| Swivel Assembly | Carbon Steel |
| Swivel Seal | FKM |
Parts
Swivel Assembly
Hardware & Loop Kit
Upright, Hub & Shaft Kit
Latch Pin Kit
Crank Handle Kit
Accessories
Video
Currently no CAD drawings for this product.
FAQs
How many GPMs will I get from my hose?
GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose/reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils, it is necessary to know the operating temperature, pressure and fluid viscosity.
Why is fluid or air leaking from my swivel?
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel may be loose or not enough pipe thread sealant on shaft threads
Remove swivel and check threads ensuring they are in good condition. Reapply thread sealant and install swivel onto reel ensuring good thread engagement.
