5400 OMP – 1/4 in. x 35 ft. Premium Duty Hose Reel

Reelcraft Series 5000 hose reels are durable and compact for a wide range of applications with critical space requirements.

  • Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • The bent tube swivel design offers a smooth hose transition onto the spool
  • The swivel is nested inside the spool for protection from impact and the environment
  • The reliable speed latch allows for positive locking of the spool in two positions per rotation
  • All steel components are powder coated for maximum corrosion resistance
  • Robotically welded steel base offers maximum strength and consistent quality
  • Made in the USA

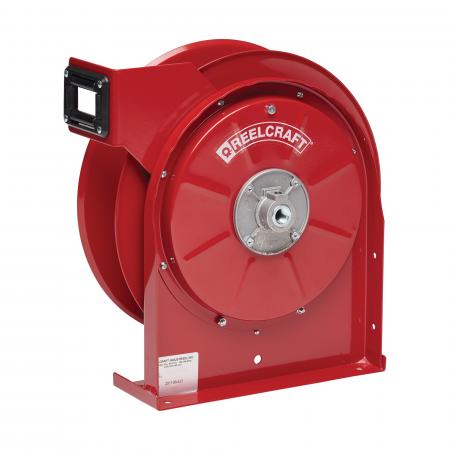

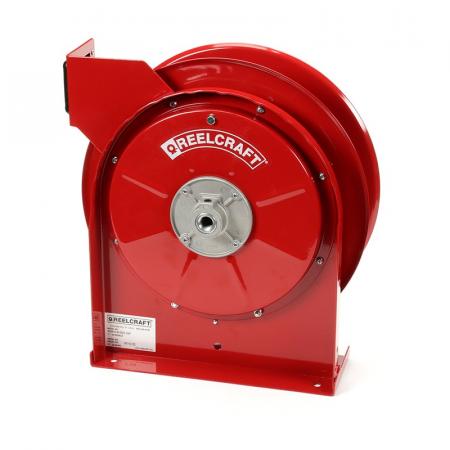

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

SKU: 5400 OMP Category:

Reel Specifications and Dimensions

Additional information

Weight23 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567000822

A14.375"
B14.25"
C9.75"
D2.5"
E6.125"


Fluid Path Materials

Internal Fluid PathSteel
Swivel AssemblySteel
Swivel SealAflas

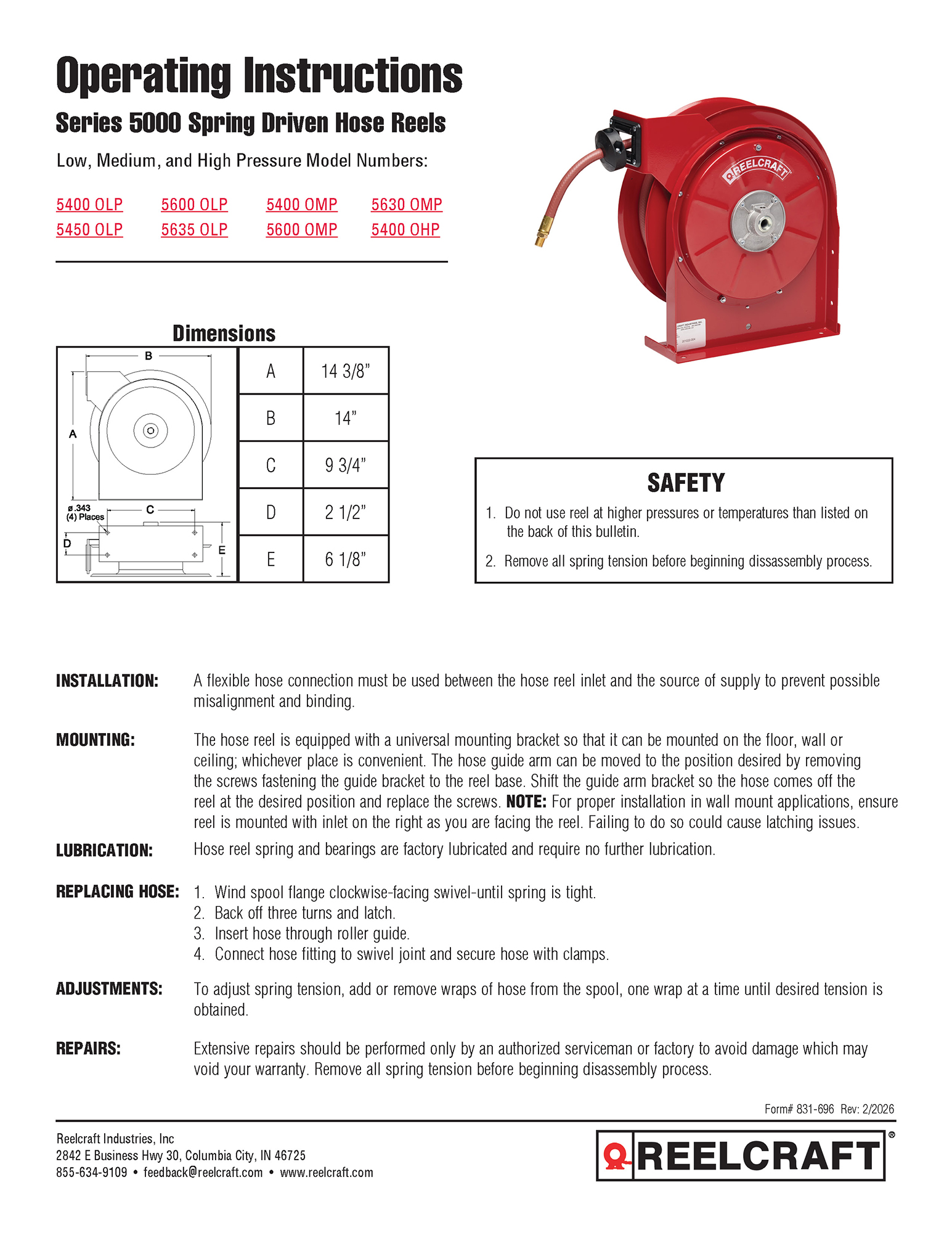

Literature and Service Manual

FAQs

How do I increase or reduce spring tension?

Can I adjust the guide opening position on an enclosed model hose reel?

Can my spring driven reel be made constant tension?

How do I install a new drive spring and set pre-turns?

How many GPM’s will I get from my hose?

Air pressure or fluid flow restricted

Hose or cord will not retract

Material leaking from swivel

Reel will not latch
