TW7460 OLPT – 1/4 in. x 60 ft. Twin Line Welding Hose Reel T-Grade

Reelcraft's Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation.

  • Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
  • Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
  • Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
  • Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design.

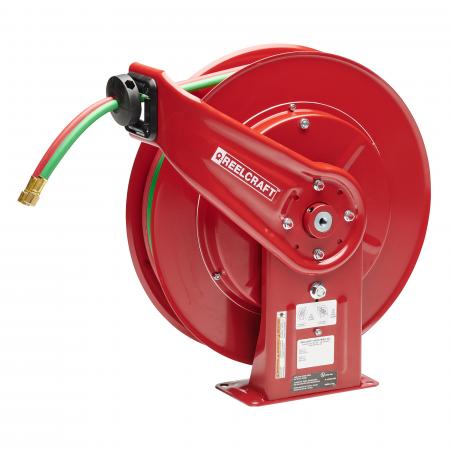

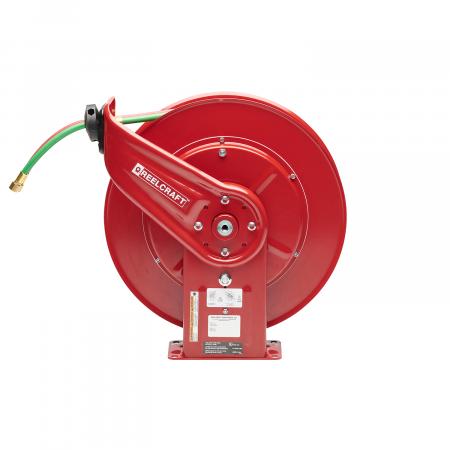

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

SKU: TW7460 OLPT Category:

Reel Specifications and Dimensions

Additional information

Weight55 lbs
Series

Hose I.D.

Hose O.D.

Hose Length

Pressure

Hose End

Inlet

Reel Outlet

Hose Included

Max Temperature

UPC

699567002420

A20.25"
B19.75"
C7.875"
D3.875"
E7.375"


Fluid Path Materials

Internal Fluid PathSteel
Swivel AssemblyAluminum / Brass
Swivel SealBuna
